1071743

Active

SICK, Inc.

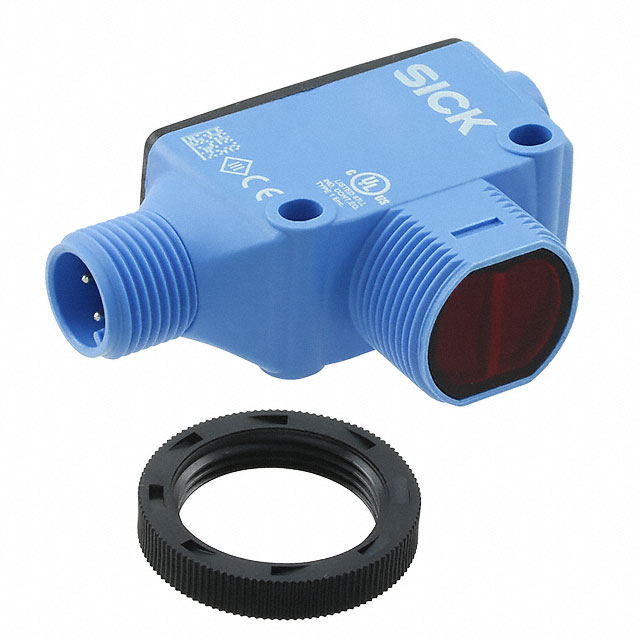

SENSOR RETROREFLECTIVE 5M PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1071743

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 5M PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1071743

Connection Method	Connector, 4POS, M12
Ingress Protection	IP67, IP69K
Light Source	Red LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	196.85 "
Sensing Distance [Max]	500 cm
Sensing Distance [Min]	30 mm
Sensing Distance [Min]	1.181 "
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

HL18 Series

Part	Ingress Protection	Output Configuration	Response Time	Connection Method	Cable Length	Cable Length	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Light Source	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method
SICK, Inc. 1071773	IP67 IP69K	PNP	500 µs	Cable	78.74 in	2 m	6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1078776	IP67	PNP	500 µs	Connector M8			6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1078610	IP67	NPN/PNP	500 µs	Cable with Connector	5.906 in	150 mm	6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. HL18-A4A3AA	IP67	NPN/PNP	500 µs	Connector M12			6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1071049	IP67	PNP	500 µs	Cable with Connector	5.906 in	150 mm	6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1083176	IP67	NPN/PNP	500 µs	Cable	78.74 in	2 m	6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1079778	IP67 IP69K	PNP	500 µs	Cable with Connector	11.81 in	30 cm	6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. HL18-N4A3BB	IP67	NPN	500 µs	Connector M12			6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1071743	IP67 IP69K	PNP - Dark-ON/Light-ON - Selectable	500 µs	4POS Connector M12			500 cm	1.181 "	196.85 "	30 mm		Red LED	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective
SICK, Inc. 1071772	IP67	NPN/PNP	500 µs	Connector M8			6.5 m	1.181 "	255.906 in	30 mm	631 nm	Red	30 VDC	10 VDC	70 °C	-40 °C	Retroreflective

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.83
		5	$ 131.45
		10	$ 122.17
		25	$ 110.91
		50	$ 103.09

Description

General part information

HL18 Series

Retroreflective Optical Sensor 1.181" ~ 196.850" (30mm ~ 5m) PNP - Dark-ON/Light-ON - Selectable
