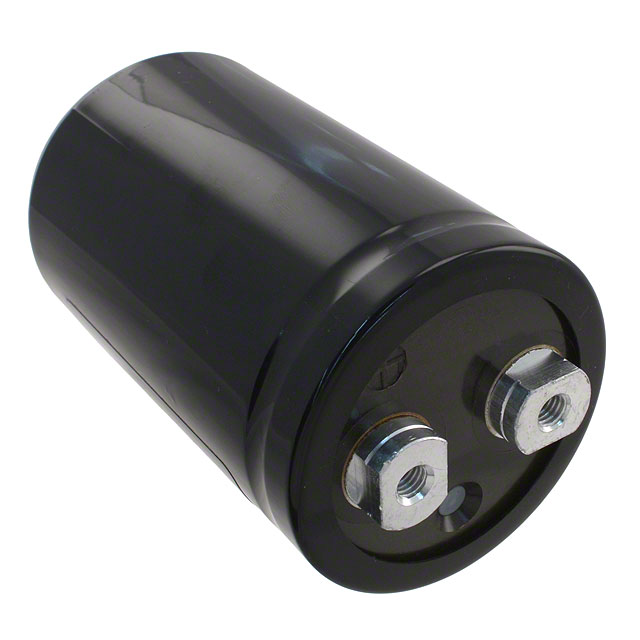

ALS30A222KF400

Active

KEMET

CAP ALUM 2200UF 20% 400V SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALS30A222KF400

ALS30A222KF400

Active

KEMET

CAP ALUM 2200UF 20% 400V SCREW

Deep-Dive with AI

DocumentsDatasheet ALS30A222KF400

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALS30A222KF400

Applications	General Purpose
Capacitance	2200 µF
ESR (Equivalent Series Resistance)	78 mOhm
Height - Seated (Max) [Max]	107 mm
Height - Seated (Max) [Max]	4.213 in
Impedance	56 mOhms
Lead Spacing	0.874 in
Lead Spacing	22.2 mm
Lifetime @ Temp.	18000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	13.5 A
Ripple Current @ Low Frequency	8.4 A
Size / Dimension [diameter]	51 mm
Size / Dimension [diameter]	2.008 "
Tolerance	20 %
Voltage - Rated	400 V

ALS30A Series

Part	Lifetime @ Temp.	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Package / Case	Ripple Current @ Low Frequency	Capacitance	Applications	Tolerance	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension
KEMET ALS30A472DA063	11000 Hrs	28 mOhms	2.047 in	52 mm	Polar	Radial Can - Screw Terminals	6.7 A	4700 µF	General Purpose	20 %	0.504 in	12.8 mm	7.4 A	36 mOhm	1.417 in	36 mm	Chassis Mount	63 V	85 °C	-40 °C
KEMET ALS30A152KF450	18000 Hrs	65 mOhms			Polar	Radial Can - Screw Terminals		1.5 mF	General Purpose	20 %	0.874 in	22.2 mm		93 mOhm	2.008 "	51 mm	Chassis Mount	450 V	85 °C	-40 °C	107 mm	4.213 in
KEMET ALS30A473DF025	11000 Hrs	7 mOhms	4.134 "	105 mm	Polar	Radial Can - Screw Terminals	16.6 A	47 mF	General Purpose	20 %	0.504 in	12.8 mm	17.4 A	9 mOhm	1.417 in	36 mm	Chassis Mount	25 VDC	85 °C	-40 °C
KEMET ALS30A222KF400	18000 Hrs	56 mOhms			Polar	Radial Can - Screw Terminals	8.4 A	2200 µF	General Purpose	20 %	0.874 in	22.2 mm	13.5 A	78 mOhm	2.008 "	51 mm	Chassis Mount	400 V	85 °C	-40 °C	107 mm	4.213 in
KEMET ALS30A102DE250	11000 Hrs	89 mOhms	3.228 in	82 mm	Polar	Radial Can - Screw Terminals	5 A	1000 µF	General Purpose	20 %	0.504 in	12.8 mm	7.4 A	117 mOhm	1.417 in	36 mm	Chassis Mount	250 V	85 °C	-40 °C
KEMET ALS30A152NF500	20000 Hrs	65 mOhms			Polar	Radial Can - Screw Terminals	10.6 A	1.5 mF	General Purpose	20 %	1.252 in	31.8 mm	17 A	120 mOhm	3.032 in	77 mm	Chassis Mount	500 V	85 °C	-40 °C	107 mm	4.213 in
KEMET ALS30A332NF400	20000 Hrs	36 mOhms	4.134 "	105 mm	Polar	Radial Can - Screw Terminals	13.4 A	3.3 mF	General Purpose	20 %	1.252 in	31.8 mm	21.3 A	49 mOhm	3.031 "	77 mm	Chassis Mount	400 V	85 °C	-40 °C
KEMET ALS30A102KE450	18000 Hrs	79 mOhms	3.307 in	84 mm	Polar	Radial Can - Screw Terminals		1000 µF	General Purpose	20 %	0.874 in	22.2 mm		118 mOhm	2.008 "	51 mm	Chassis Mount	450 V	85 °C	-40 °C
KEMET ALS30A472NP400	20000 Hrs	24 mOhms	5.748 in	146 mm	Polar	Radial Can - Screw Terminals	18 A	4700 µF	General Purpose	20 %	1.252 in	31.8 mm	26 A	33 mOhm	3.031 "	77 mm	Chassis Mount	400 V	85 °C	-40 °C
KEMET ALS30A222MF400	19000 Hrs	44 mOhms			Polar	Radial Can - Screw Terminals	11.2 A	2200 µF	General Purpose	20 %	1.122 in	28.5 mm	18.8 A	62 mOhm	2.598 in		Chassis Mount	400 V	85 °C	-40 °C	107 mm	4.213 in	66 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.79
		24	$ 33.34
		72	$ 30.97
		120	$ 30.53

Description

General part information

ALS30A Series

2200 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 78mOhm @ 100Hz 18000 Hrs @ 85°C
