1041456

Active

SICK, Inc.

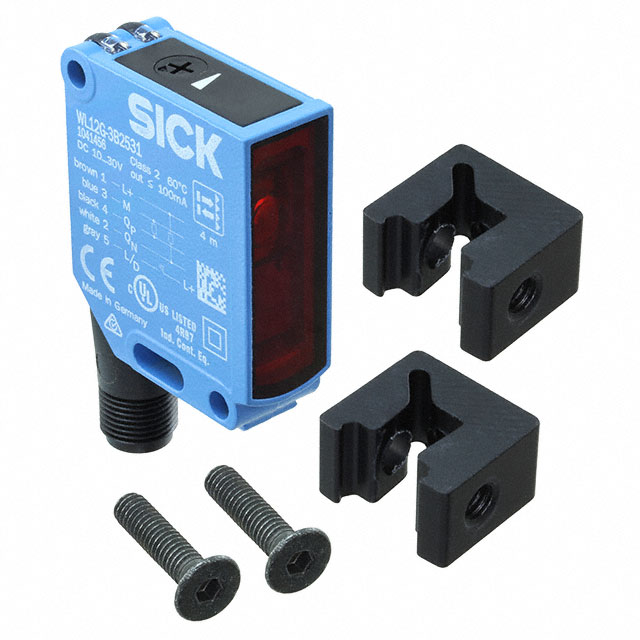

SENSOR RETROREFLECTVE 4M NPN/PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR RETROREFLECTVE 4M NPN/PNP

Technical Specifications

Parameters and characteristics for this part

Specification	1041456

Adjustment Type	11-Turn Potentiometer, Adjustable
Connection Method	Connector, 5POS, M12
Ingress Protection	IP69K, IP67, IP66
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	330 µs
Sensing Distance [Max]	157.48 "
Sensing Distance [Max]	4 m
Sensing Distance [Min]	0 "
Sensing Distance [Min]	0 mm
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Method	Adjustment Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Light Source	Connection Method	Output Configuration	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance
SICK, Inc. 1041456	Retroreflective	11-Turn Potentiometer Adjustable	IP66 IP67 IP69K	-40 °C	60 °C	330 µs	Red LED	5POS Connector M12	Dark-ON/Light-ON NPN/PNP Selectable	157.48 "	0 "	4 m	0 mm	30 VDC	10 VDC
SICK, Inc. 1053536	Retroreflective	Adjustable		-40 °C	60 °C	333 µs	Infrared	Connector M12	PNP					30 VDC	10 VDC	157.48 in	4 m
SICK, Inc. 1053537	Retroreflective	Adjustable		-40 °C	60 °C	333 µs	Red (660nm)	Connector M12	PNP					30 VDC	10 VDC	157.48 in	4 m
SICK, Inc. 1053538	Retroreflective	Adjustable		-40 °C	60 °C	333 µs	Red (660nm)	Connector M12	NPN					30 VDC	10 VDC	157.48 in	4 m
SICK, Inc. 1053542	Retroreflective	Adjustable		-40 °C	60 °C	333 µs	Red (660nm)	Connector M12	PNP					30 VDC	10 VDC	157.48 in	4 m
SICK, Inc. 1053546	Retroreflective	Adjustable		-40 °C	60 °C	333 µs	Red (660nm)	Connector M12	PNP					30 VDC	10 VDC	157.48 in	4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 0" ~ 157.480" (0m ~ 4m) NPN/PNP - Dark-ON/Light-ON - Selectable
