H2U1631S1A0200
ActiveUnictron Technologies Corporation

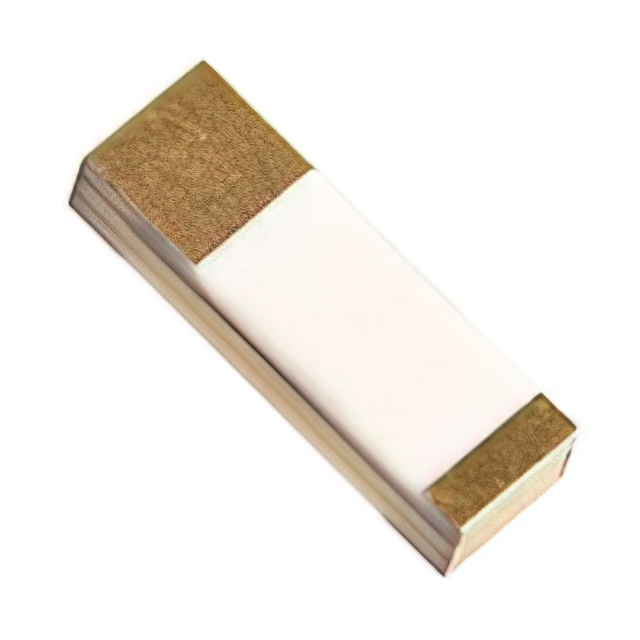

ANTENNA CHIP 3DBI GAIN 2-PIN CHIP T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2U1631S1A0200
ActiveUnictron Technologies Corporation
ANTENNA CHIP 3DBI GAIN 2-PIN CHIP T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2U1631S1A0200 |
|---|---|
| Antenna Type | Chip |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 3 dBi |
| Height (Max) [Max] | 0.154 in |
| Height (Max) [Max] | 3.9 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.52 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.29 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 1.52 | ||
| 10 | $ 1.36 | |||
| 25 | $ 1.29 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.75 | |||
| Tape & Reel (TR) | 2000 | $ 0.70 | ||
| 6000 | $ 0.67 | |||
| 10000 | $ 0.64 | |||
Description
General part information
H2U1631 Series
RF ANTENNA GPS Chip Solder Surface Mount
Documents
Technical documentation and resources
