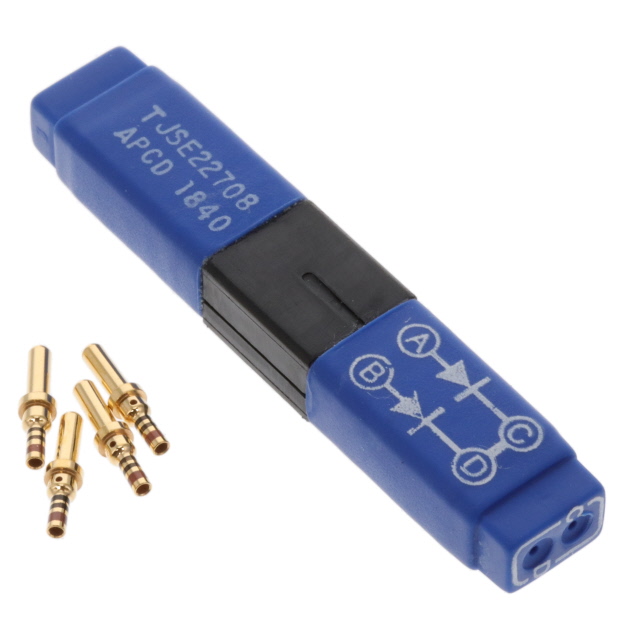

TJSE22708

Active

AMPHENOL PCD

CONN WIRE SPLICE DIODE SZ22

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN WIRE SPLICE DIODE SZ22

Technical Specifications

Parameters and characteristics for this part

Part	Contact Size	Module Capacity	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
AMPHENOL PCD TJSE22840	22	2	Resistor Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE22711	22	4	Diode Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE22720	22		Resistor Wire Splice
AMPHENOL PCD TJSE22708	22		Diode Wire Splice
AMPHENOL PCD TJSE22510	22	2		6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE22311			Diode Wire Splice
AMPHENOL PCD TJSE22842	22	4	Resistor Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE22709	22	4	Diode Wire Splice
AMPHENOL PCD TJSE22841	22	4	Resistor Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 107.30

General part information

Connector Wire Splice, Diode Contact Size 22

Technical documentation and resources

No documents available
