54152AFM
ActiveNational Semiconductor
MULTIPLEXER 8 LINE INPUT, TTL
Deep-Dive with AI
Search across all available documentation for this part.
54152AFM
ActiveNational Semiconductor
MULTIPLEXER 8 LINE INPUT, TTL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 54152AFM |
|---|---|
| Circuit [custom] | 8:1 |
| Circuit [custom] | 1 |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |

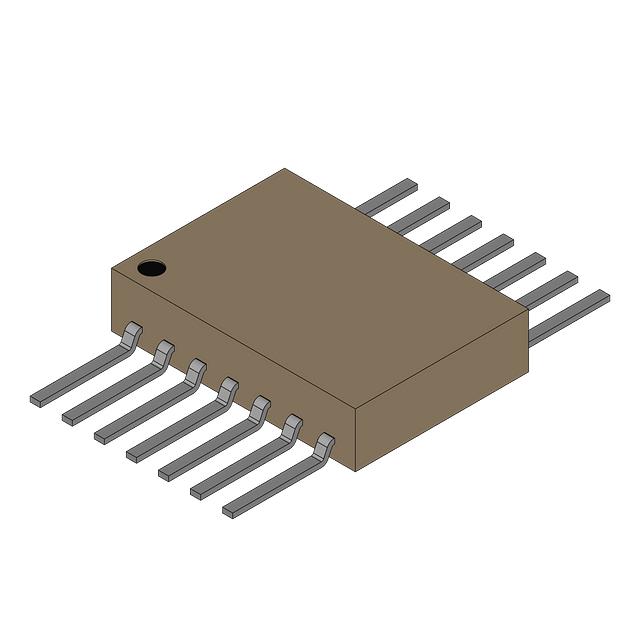

| Package / Case | 14-CFlatpack |
| Type | Data Selector/Multiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 18 | $ 17.45 | |
Description
General part information
54152 Series
Data Selector/Multiplexer 1 x 8:1 14-CFP
Documents
Technical documentation and resources
No documents available
