BL-0.71" X 36YD

Active

TapeCase

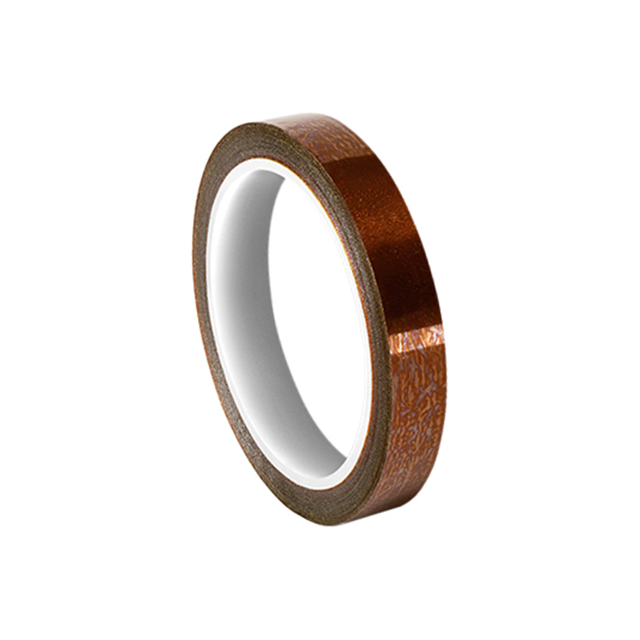

TAPE FILM AMBER 0.71"X36YDS

Search across all available documentation for this part.

Active

TapeCase

TAPE FILM AMBER 0.71"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	BL-0.71" X 36YD

Adhesive	Silicone
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	24 °C
Storage/Refrigeration Temperature	75 °F
Tape Type	Film
Temperature Range [Max]	365 °F
Temperature Range [Max]	185 °C
Temperature Range [Min]	4 °C
Temperature Range [Min]	40 °F
Thickness	0.0026 "
Thickness	0.066 mm
Thickness	2.6 mils
Thickness - Adhesive	0.041 mm
Thickness - Adhesive	1.6 mils
Thickness - Adhesive	0.0016 "
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Width [x]	0.71 in
Width [x]	18 mm

Part	Shelf Life Start	Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Width [x]	Width [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Length	Length	Length	Tape Type	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Thickness	Thickness	Thickness	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive
TapeCase BL-0.71" X 36YD	Date of Shipment	Silicone	24 °C	75 °F	12 Months	0.71 in	18 mm	1 mils	0.025 mm	0.001 "	Amber	36 yd	32.9 m	108 ft	Film	4 °C	365 °F	40 °F	185 °C	0.0026 "	0.066 mm	2.6 mils	Polyimide	0.041 mm	1.6 mils	0.0016 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Film Tape Silicone Adhesive Amber 0.71" (18.00mm) X 108' (32.9m) 36 yds
