837-028-559-104
ActiveEDAC Inc.

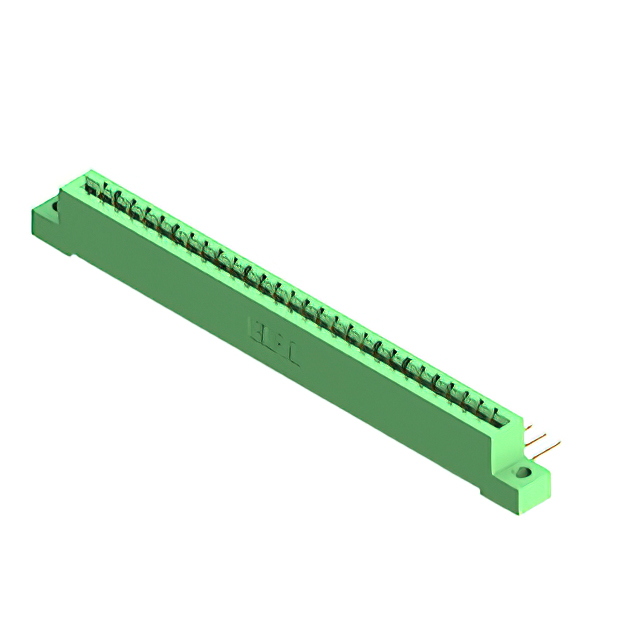

CONN EDGE SGL FMALE 28POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-028-559-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 28POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-028-559-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-028 Series
...
| Part | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Contact Finish | Pitch [x] | Pitch [x] | Contact Type | Contact Material | Color | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Mounting Type | Number of Positions | Read Out | Flange Feature | Material - Insulation | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 1 | Through Hole Right Angle | 28 | Single | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 28 | ||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Wire Wrap | 1 | Through Hole | 28 | Single | Flush Mount Side Opening Unthreaded | Diallyl Phthalate (DAP) | 28 | 3.25 mm | 0.128 " |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 1 | Through Hole Right Angle | 28 | Single | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 28 | 3.96 mm | 0.156 in |
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 2 | Through Hole | 28 | Dual | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 14 | ||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 2 | Through Hole | 28 | Dual | M3 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 14 | ||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 1 | Through Hole | 28 | Single | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 28 | ||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 1 | Through Hole Right Angle | 28 | Single | Diallyl Phthalate (DAP) | 28 | |||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 2 | Through Hole | 28 | Dual | Flush Mount Side Opening Unthreaded | Diallyl Phthalate (DAP) | 14 | 3.25 mm | 0.128 " |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Wire Wrap | 1 | Through Hole | 28 | Single | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 28 | ||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Green | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Solder | 2 | Through Hole Right Angle | 28 | Dual | M3 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 61.08 | |
Description
General part information
837-028 Series
28 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
