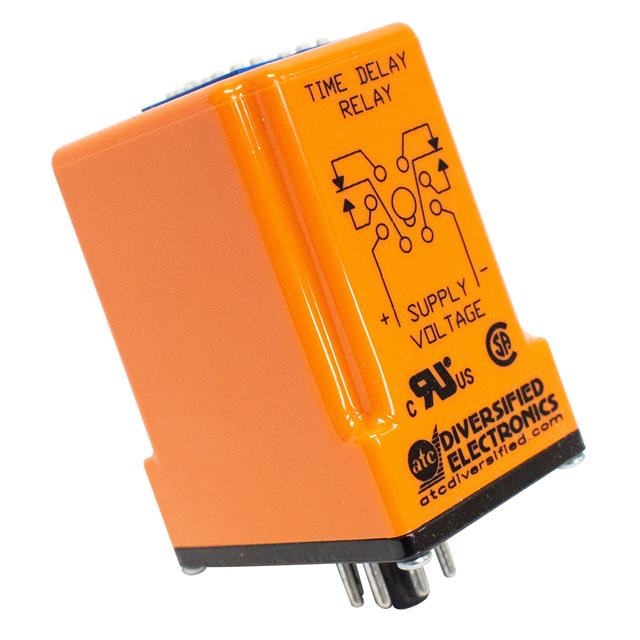

TBF-120-A-E-A
ActiveATC-Diversified Electronics
RELAY TIME DEL 1023MIN 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TBF-120-A-E-A |
|---|---|
| Contact Rating @ Voltage | 10 A |
| Delay Time [Max] | 1023 Min |
| Delay Time [Min] | 1 Min |
| Function | Repeat Cycle |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | DIP Switches |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 257.54 | |
Description
General part information
TBF-120 Series
Repeat Cycle Time Delay Relay 1 Min ~ 1023 Min Delay 10A @ 250VAC/24VDC Socketable
