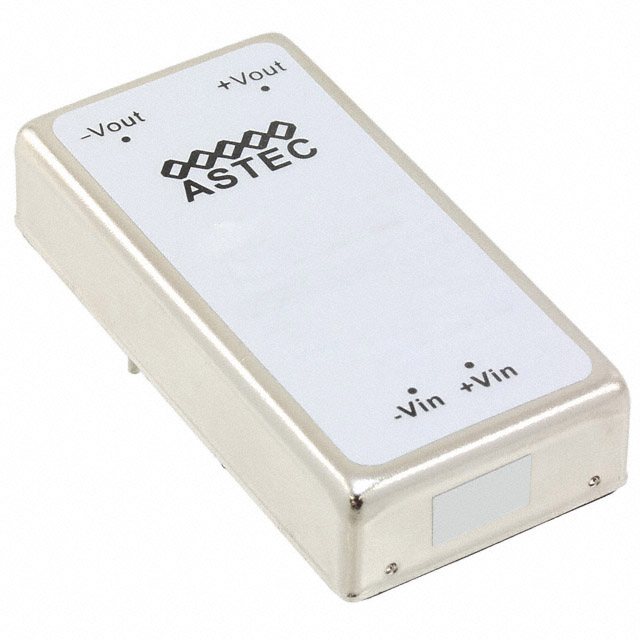

AEE03A36-LS
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
AEE03A36-LS
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEE03A36-LS |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 84 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 11.3 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 38.84 | |
| 5 | $ 36.62 | |||
| 10 | $ 35.70 | |||
| 25 | $ 34.52 | |||
| 50 | $ 33.65 | |||
| 100 | $ 33.49 | |||
Description
General part information
AEE03A Series
Isolated Module DC DC Converter 1 Output 5V 3A 18V - 75V Input
