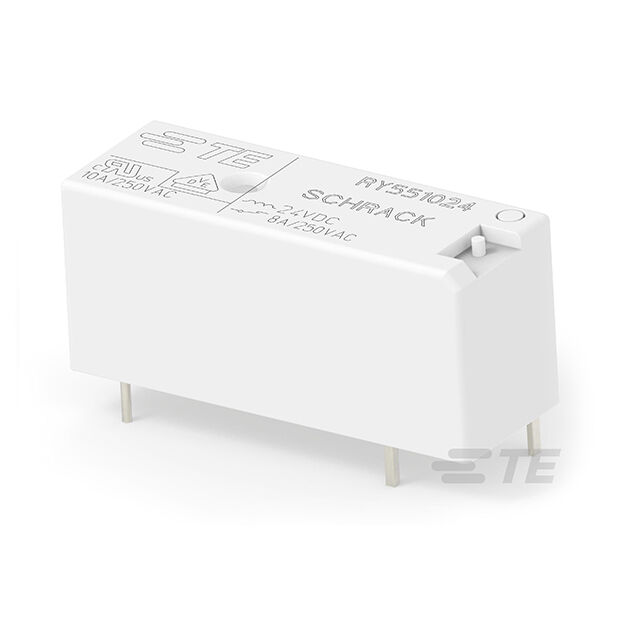

1393225-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 8A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1393225-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 8A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1393225-2 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 10.2 mA |
| Coil Resistance | 2.35 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.85 | |
| 20 | $ 3.23 | |||
| 40 | $ 3.10 | |||
| 60 | $ 3.03 | |||
| 100 | $ 2.94 | |||
| 260 | $ 2.78 | |||
| 500 | $ 2.68 | |||
| 1000 | $ 2.57 | |||
Description
General part information
RY5510 Series
General Purpose Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
