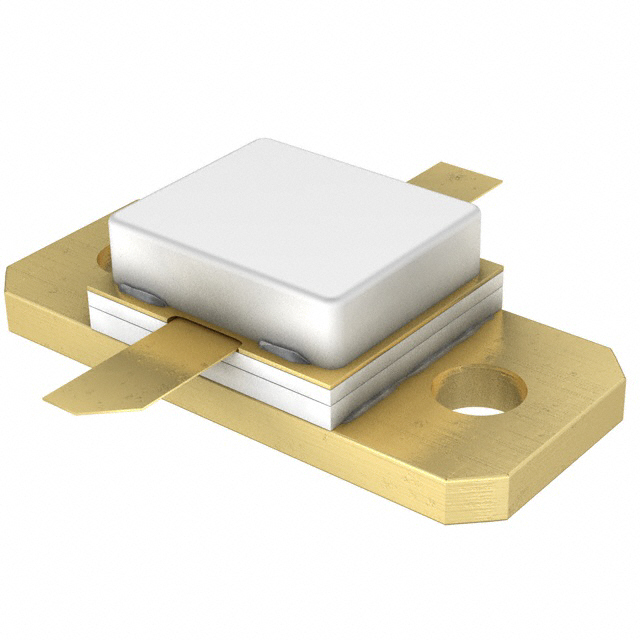

MZ0912B100Y,114

Obsolete

Ampleon USA Inc.

RF TRANS NPN 20V 1.215GHZ CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF TRANS NPN 20V 1.215GHZ CDFM2

Technical Specifications

Parameters and characteristics for this part

Specification	MZ0912B100Y,114

Current - Collector (Ic) (Max) [Max]	6 A
Frequency - Transition	1.215 GHz
Gain	7.6 dBi
Mounting Type	Chassis Mount
Operating Temperature	200 °C
Package / Case	SOT-443A
Power - Max [Max]	290 W
Supplier Device Package	CDFM2
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	20 V

Part	Mounting Type	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Gain	Current - Collector (Ic) (Max) [Max]	Transistor Type	Operating Temperature	Package / Case	Supplier Device Package	Frequency - Transition
Ampleon USA Inc. MZ0912B100Y,114	Chassis Mount	290 W	20 V	7.6 dBi	6 A	NPN	200 °C	SOT-443A	CDFM2	1.215 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 20V 6A 1.215GHz 290W Chassis Mount CDFM2
