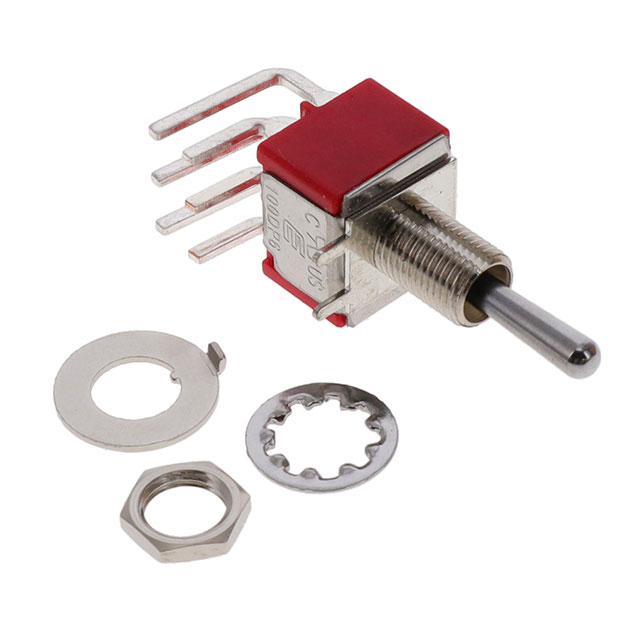

100DP6T1B1M6QEH

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP6T1B1M6QEH

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100DP6T1B1M6QEH

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SP3T
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Mounting Type	Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

100DP6 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Length [x]	Termination Style	Illumination	Switch Function	Actuator Type	Bushing Thread	Voltage Rating - AC	Circuit	Actuator Material	Mounting Type	Features	Current Rating (Amps)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
E-Switch 100DP6T2B4M6RE	-30 ░C	85 °C	40000 Cycles	5.08 mm	PC Pin	Non-Illuminated	On-On-On	Standard Round	Unthreaded	20 V	SP3T	Brass Chrome Plated	Through Hole Right Angle	Jumper needed to achieve triple throw	0.4 VA	20 V
E-Switch 100DP6T1B1M6QEH	-30 ░C	85 °C	40000 Cycles	10.41 mm	PC Pin	Non-Illuminated	On-On-On	Standard Round	1/4-40	120 V	SP3T	Brass Chrome Plated	Panel Mount Right Angle	Jumper needed to achieve triple throw	5 A	28 V	0.25 in
E-Switch 100DP6T3B2VS3QE	-30 ░C	85 °C	40000 Cycles	13.97 mm	PC Pin	Non-Illuminated	On-On-On	Standard Round	Unthreaded	120 V	SP3T	Brass Chrome Plated	Through Hole	Jumper needed to achieve triple throw	5 A	28 V
E-Switch 100DP6T2B2M7RE	-30 ░C	85 °C	40000 Cycles	5.08 mm	PC Pin	Non-Illuminated	On-On-On	Standard Round	Unthreaded	20 V	SP3T	Brass Chrome Plated	Right Angle Through Hole Vertical	Jumper needed to achieve triple throw	0.4 VA	20 V
E-Switch 100DP6T1B6M1QE	-30 ░C	85 °C	40000 Cycles	9.91 mm	Solder Lug	Non-Illuminated	On-On-On	Standard Round	1/4-40	120 V	SP3T	Brass Chrome Plated		Jumper needed to achieve triple throw	5 A	28 V	0.25 in
E-Switch 100DP6T6B15M3QEH	-30 ░C	85 °C	40000 Cycles	12.29 mm	Quick Connect - 0.062" (1.5mm)	Non-Illuminated	On-On-On	Flat Anti-Rotation	1/4-40	120 V	SP3T	Brass Chrome Plated		Jumper needed to achieve triple throw	5 A	28 V	0.25 in
E-Switch 100DP6T1B4M2QE	-30 ░C	85 °C	40000 Cycles	10.41 mm	PC Pin	Non-Illuminated	On-On-On	Standard Round	Unthreaded	120 V	SP3T	Brass Chrome Plated	Through Hole	Jumper needed to achieve triple throw	5 A	28 V
E-Switch 100DP6K2B25M1QE	-30 ░C	85 °C	40000 Cycles	14.73 mm	Solder Lug	Non-Illuminated	On-On-On	Locking Lever	1/4-40	120 V	SP3T	Brass Chrome Plated		Jumper needed to achieve triple throw	5 A	28 V	0.25 in
E-Switch 100DP6T6B11M1REH	-30 ░C	85 °C	40000 Cycles	12.3 mm	Solder Lug	Non-Illuminated	On-On-On	Flat Anti-Rotation	1/4-40	20 V	SP3T	Brass Chrome Plated		Jumper needed to achieve triple throw	0.4 VA	20 V	0.25 in
E-Switch 100DP6T8B13M1QEH	-30 ░C	85 °C	40000 Cycles	18 mm	Solder Lug	Non-Illuminated	On-On-On	Standard Round	15/32-32	120 V	SP3T	Brass Chrome Plated		Jumper needed to achieve triple throw	5 A	28 V	11.91 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.36
		10	$ 3.93
		25	$ 3.74
		66	$ 3.58
		132	$ 3.46

Description

General part information

100DP6 Series

Toggle Switch SP3T Panel Mount, Right Angle
