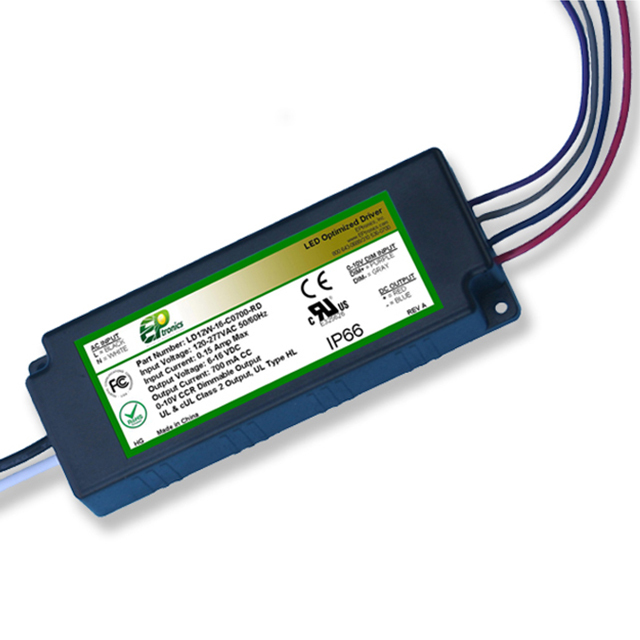

LD12W-48-C0250-RD

Active

EPtronics, Inc.

24~48V@250MA, 0~10V DIM TO 0%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LD12W-48-C0250-RD

Active

EPtronics, Inc.

24~48V@250MA, 0~10V DIM TO 0%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LD12W-48-C0250-RD

Approval Agency	CE, FCC, cURus
Current - Output (Max) [Max]	250 mA
Dimming [Max] [custom]	10 V
Dimming [Min] [custom]	0 V
Efficiency	84 %
Features	SCP, OCP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	12 W
Ratings	IP66
Size / Dimension [x]	85.1 mm
Size / Dimension [x]	3.35 in
Size / Dimension [y]	36.1 mm
Size / Dimension [y]	1.42 in
Size / Dimension [z]	23.1 mm
Size / Dimension [z]	0.91 in
Standard Number	C22.2, UL 8750
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	48 V
Voltage - Output [Min]	24 V
Weight	127.6 g
Weight	0.281 lb

LD12W Series

Part	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Output (Max) [Max]	Termination Style	Number of Outputs	Approval Agency	Ratings	Topology	Features	Mounting Type	Dimming [Max] [custom]	Dimming [Min] [custom]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Weight	Weight	Standard Number	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]	Efficiency	Voltage - Output	Dimming
EPtronics, Inc. LD12W-48-C0220-RD	3750 V	-40 °C	60 °C	Constant Current	220 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount	10 V	0 V	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC	127.6 g	0.281 lb	C22.2 UL 8750	10.6 W	48 V	24 V
EPtronics, Inc. LD12W-48-C0250-RD	3750 V	-40 °C	60 °C	Constant Current	250 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount	10 V	0 V	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC	127.6 g	0.281 lb	C22.2 UL 8750	12 W	48 V	24 V	84 %
EPtronics, Inc. LD12W-12-C1000	3750 V	-30 ░C	50 °C	Constant Current	1 A	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount			23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC				12 W	12 V	6 V	77 %
EPtronics, Inc. LD12W-24	3750 V	-30 ░C	50 °C	Constant Voltage	500 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount			23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	90 VAC	305 VAC	127.6 g	0.281 lb	C22.2 UL 8750	12 W			78 %	24 V	Non-Dimmable
EPtronics, Inc. LD12W-16-C0800	3750 V	-30 ░C	50 °C	Constant Current	800 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount			23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC				13 W	16 V	8 V	78 %
EPtronics, Inc. LD12W-12	3750 V	-30 ░C	50 °C	Constant Voltage	1 A	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount			23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	90 VAC	305 VAC	127.6 g	0.281 lb	C22.2 UL 8750	12 W			77 %	12 V	Non-Dimmable
EPtronics, Inc. LD12W-12-C1000-RD	3750 V	-40 °C	60 °C	Constant Current	1 A	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount	10 V	0 V	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC	127.6 g	0.281 lb	C22.2 UL 8750	12 W	12 V	6 V	78 %
EPtronics, Inc. LD12W-16-C0700	3750 V	-30 ░C	50 °C	Constant Current	700 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount			23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC				11 W	16 V	8 V	78 %
EPtronics, Inc. LD12W-48-C0125-RD	3750 V	-40 °C	60 °C	Constant Current	125 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount	10 V	0 V	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC	127.6 g	0.281 lb	C22.2 UL 8750	7.2 W	48 V	24 V	81 %
EPtronics, Inc. LD12W-48-C0250	3750 V	-30 ░C	50 °C	Constant Current	250 mA	Wire Leads	1	CE cURus FCC	IP66	AC DC Converter	OCP OVP SCP	Chassis Mount			23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	100 VAC	305 VAC				12 W	48 V	24 V	80 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.50
		5	$ 24.73
		10	$ 23.99
		25	$ 23.27
		50	$ 22.57
		100	$ 21.89

Description

General part information

LD12W Series

250mA 24 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
