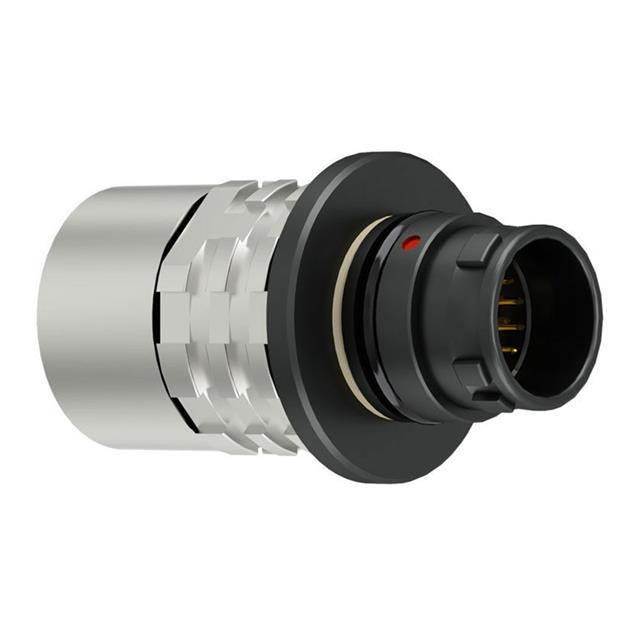

A10WAM-P12XMM0-0000

Active

ODU

CONN PLUG MALE 12POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN PLUG MALE 12POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A10WAM-P12XMM0-0000

Applications	Medical, Industrial, Military
Cable Opening [custom]	0.276 in
Cable Opening [custom]	7 mm
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	5 A, 1 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	A
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	250 VAC

Part	Primary Material	Fastening Type	Connector Type	Number of Positions	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Color	Voltage Rating	Orientation	Shell Material	Shell Size - Insert	Applications	Mounting Type	Shell Finish	Current Rating (Amps)
ODU A10WAM-P12XMM0-0000	Metal	Detent Lock Push-Pull	Male Pins Plug	12	Shielded	-51 °C	125 °C	IP68 - Dust Tight Waterproof	Gold	0.276 in	7 mm	Black Silver	250 VAC	A	Brass	0	Industrial Medical Military	Free Hanging (In-Line)	Ruthenium over Electroless Nickel	1 A 5 A
ODU A10WAM-P09XMM0-0000	Metal	Detent Lock Push-Pull	Male Pins Plug	9	Shielded	-51 °C	125 °C	IP68 - Dust Tight Waterproof	Gold	0.276 in	7 mm	Black Silver	250 VAC	A	Brass	0	Industrial Medical Military	Free Hanging (In-Line)	Ruthenium over Electroless Nickel	1 A 5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (10 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
