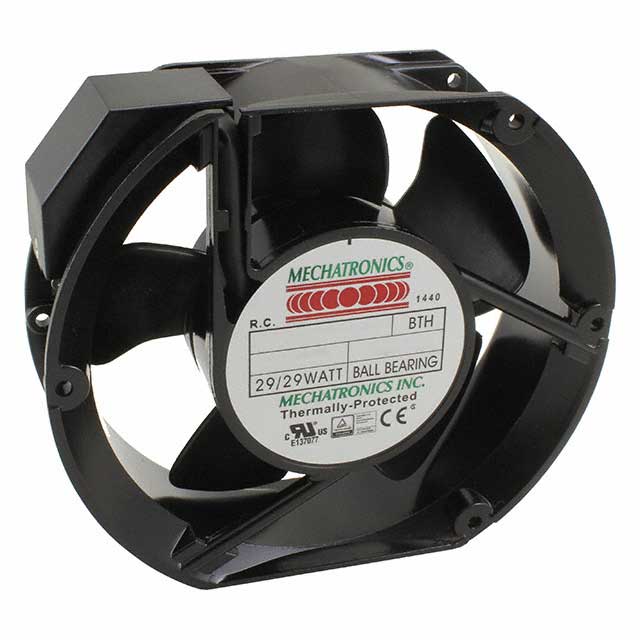

UF15P12-BTHR

Active

Mechatronics Bearing Group

FAN AXIAL 172X51MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Installation Instructions

UF15P12-BTHR

Active

Mechatronics Bearing Group

FAN AXIAL 172X51MM 115VAC TERM

Deep-Dive with AI

DocumentsDatasheet Installation Instructions

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF15P12-BTHR

Air Flow	226 CFM
Air Flow	6.33 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.25 A
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	58 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	31 W
RPM	3400 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	196.8 Pa
Static Pressure	0.79 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	51 mm

UF15P Series

Part	Features	RPM	Approval Agency	Bearing Type	Noise	Width [y]	Ingress Protection	Fan Type	Weight	Weight	Material - Blade	Material - Frame	Static Pressure	Static Pressure	Termination	Voltage - Rated	Power (Watts)	Current Rating (Amps)	Air Flow	Air Flow	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Mechatronics Bearing Group UF15PC23-BTHNSR	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm	IP55 - Dust Protected Water Resistant	Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Terminals	230 VAC	31 W	120 mA	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PE23-BWHR		3400 RPM	CE TUV	Ball	58 dB(A)	51 mm		Tubeaxial	816.5 g	1.8 lbs		Aluminum	196.8 Pa	0.79 in H2O	2 Wire Leads	230 VAC		120 mA	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PC12-BTHR-CC	Conformal Coating Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm		Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Terminals	115 VAC	31 W	0.25 A	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15P12-BTHR		3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm		Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Terminals	115 VAC	31 W	0.25 A	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PC23-BTHR-CC	Conformal Coating Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm		Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Terminals	230 VAC	31 W	120 mA	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PC12-BTHNR	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm	IP55 - Dust Protected Water Resistant	Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Terminals	115 VAC	31 W	0.25 A	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PC12-BTMR	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)		CE cUL TUV UL	Ball		51 mm		Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum			2 Terminals	115 VAC					Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PC23-BWHNSR	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm	IP55 - Dust Protected Water Resistant	Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Wire Leads	230 VAC	31 W	120 mA	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PC12-BTHNSR	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	3400 RPM	CE cUL TUV UL	Ball	58 dB(A)	51 mm	IP55 - Dust Protected Water Resistant	Tubeaxial	816.5 g	1.8 lbs	Polybutylene Terephthalate (PBT)	Aluminum	196.8 Pa	0.79 in H2O	2 Terminals	115 VAC	31 W	0.25 A	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Bearing Group UF15PE12-BWHR		3400 RPM	CE TUV	Ball	58 dB(A)	51 mm		Tubeaxial	816.5 g	1.8 lbs		Aluminum	196.8 Pa	0.79 in H2O	2 Wire Leads	115 VAC		0.25 A	226 CFM	6.33 m³/min	Rectangular/Rounded	150 mm	172 mm	70 °C	70 °C	-40 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.65
		10	$ 34.38
		25	$ 33.08
		50	$ 30.90
		100	$ 28.51
		250	$ 28.07

Description

General part information

UF15P Series

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 2 Terminals
