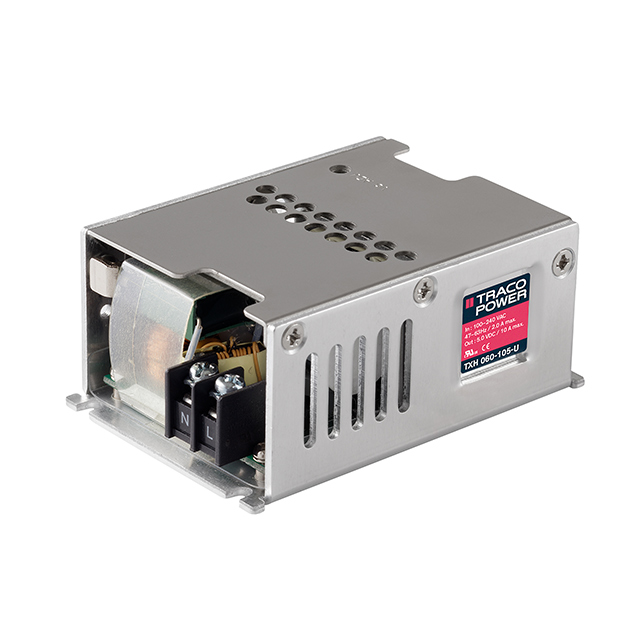

TXH 060-105

Active

Traco Power

AC/DC CONVERTER 5V 50W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 5V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	TXH 060-105

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	10 A
Efficiency	81 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	50 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.3 mm
Size / Dimension [y]	1.99 "
Size / Dimension [y]	50.6 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V

Part	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Output 1	Type	Voltage - Isolation	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Minimum Load Required	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Current - Output 1
Traco Power TXH 060-105	1	264 VAC 370 VDC	90 VAC 120 VDC	81 %	5 V	Enclosed	4.242 kV	Chassis Mount	Adjustable Output Universal Input	38 mm	3 "	1.5 "	1.99 "	76.3 mm	50.6 mm		ITE (Commercial)	70 °C	-30 °C	CE cURus	50 W	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 90 ~ 264 VAC, 120 ~ 370 VDC Input
