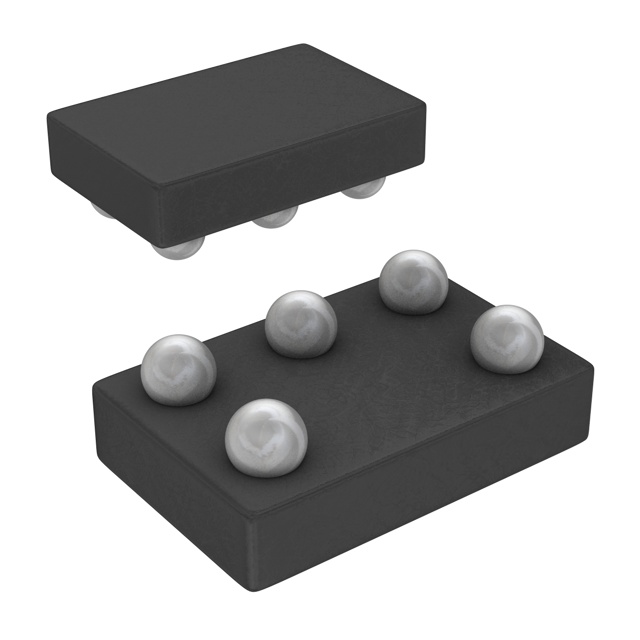

SN74LVC1G66YZPR

Active

Texas Instruments

5-V, 1:1 (SPST), 1-CHANNEL ANALOG SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDesign Summary for WCSP Little Logic (Rev. B)Power-Up 3-State (PU3S) Circuits in TI Standard Logic Devices +28

SN74LVC1G66YZPR

Active

Texas Instruments

5-V, 1:1 (SPST), 1-CHANNEL ANALOG SWITCH

Deep-Dive with AI

DocumentsDesign Summary for WCSP Little Logic (Rev. B)Power-Up 3-State (PU3S) Circuits in TI Standard Logic Devices +28

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SN74LVC1G66YZPR

-3db Bandwidth	300 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Current - Leakage (IS(off)) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max) [Max]	10 Ohms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	DSBGA, 5-XFBGA
Supplier Device Package	5-DSBGA
Supplier Device Package [x]	1.4
Supplier Device Package [y]	0.9
Switch Circuit	SPST - NO
Switch Time (Ton, Toff) (Max) [custom]	5 ns
Switch Time (Ton, Toff) (Max) [custom]	4.2 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V

SN74LVC1G66-Q1 Series

Automotive 5.5-V, 1:1 (SPST), 1-channel analog switch

Part	Package / Case	Multiplexer/Demultiplexer Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	On-State Resistance (Max) [Max]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Leakage (IS(off)) (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth	Supplier Device Package	Switch Circuit	Supplier Device Package [x]	Supplier Device Package [y]	Qualification	Grade
Texas Instruments SN74LVC1G66DCKRG4	5-TSSOP SC-70-5 SOT-353	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	SC-70-5	SPST - NO
Texas Instruments SN74LVC1G66DBVT	SC-74A SOT-753	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	SOT-23-5	SPST - NO
Texas Instruments SN74LVC1G66YZPR	5-XFBGA DSBGA	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	5-DSBGA	SPST - NO	1.4	0.9
Texas Instruments 1P1G66QDBVRQ1	SC-74A SOT-753	1:1	6.9 ns	7.2 ns	25 Ohms	1.65 V	5.5 V	1	125 °C	-40 °C	Surface Mount	1 µA	6 pF	6 pF	300 MHz	SOT-23-5	SPST - NO			AEC-Q100	Automotive
Texas Instruments SN74LVC1G66DRLR	SOT-553	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	SOT-5	SPST - NO
Texas Instruments SN74LVC1G66QDCKRQ1	5-TSSOP SC-70-5 SOT-353	1:1	6.9 ns	7.2 ns	25 Ohms	1.65 V	5.5 V	1	125 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	SC-70-5	SPST - NO			AEC-Q100	Automotive
Texas Instruments SN74LVC1G66DBVRE4	SC-74A SOT-753	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	SOT-23-5	SPST - NO
Texas Instruments SN74LVC1G66DSFR	6-XFDFN	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	6-SON (1x1)	SPST - NO
Texas Instruments SN74LVC1G66DBVR	SC-74A SOT-753	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	SOT-23-5	SPST - NO
Texas Instruments SN74LVC1G66DSF2	6-XFDFN	1:1	5 ns	4.2 ns	10 Ohms	1.65 V	5.5 V	1	85 °C	-40 °C	Surface Mount	100 nA	6 pF	6 pF	300 MHz	6-SON (1x1)	SPST - NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.59
		10	$ 0.51
		25	$ 0.47
		100	$ 0.38
		250	$ 0.35
		500	$ 0.30
		1000	$ 0.23
	Digi-Reel®	1	$ 0.59
		10	$ 0.51
		25	$ 0.47
		100	$ 0.38
		250	$ 0.35
		500	$ 0.30
		1000	$ 0.23
	Tape & Reel (TR)	3000	$ 0.16
		6000	$ 0.15
		15000	$ 0.14
		30000	$ 0.14
		75000	$ 0.13
Texas Instruments	LARGE T&R	1	$ 0.30
		100	$ 0.20
		250	$ 0.16
		1000	$ 0.10

Description

General part information

SN74LVC1G66-Q1 Series

This single analog switch is designed for 1.65-V to 5.5-V VCCoperation.

The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak).

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
