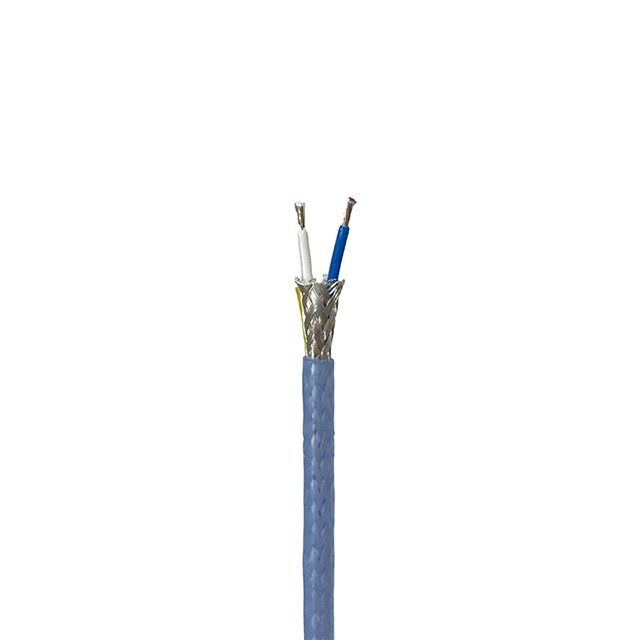

M17/176-00002-4

Active

Remington Industries

M17/176-00002 TWINAX CABLE (SHIE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M17/176-00002-4

Active

Remington Industries

M17/176-00002 TWINAX CABLE (SHIE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M17/176-00002-4

Cable Type	Twinaxial
Conductor Material	Copper, Silver Coated
Dielectric Material	Perfluoroalkoxy (PFA)
Impedance	78 Ohms
Jacket (Insulation) Material	Perfluoroalkoxy (PFA)
Jacket Color	Blue
Length [x]	1.22 m
Length [x]	4 ft
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	100 %
Shield Material	Copper Alloy, Silver Coated
Shield Type	Braid
Wire Gauge	24 AWG

M17/176 Series

Part	Impedance	Jacket Color	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Cable Type	Shield Material	Dielectric Material	Conductor Material	Length [x]	Length [x]
Remington Industries M17/176-00002-25	78 Ohms	Blue	25 ft	7.62 m	-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated
Remington Industries M17/176-00002-4	78 Ohms	Blue			-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated	1.22 m	4 ft
Remington Industries M17/176-00002-250	78 Ohms	Blue	3000 "	76.2 m	-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated
Remington Industries M17/176-00002-100	78 Ohms	Blue			-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated	30.48 m	100 ft
Remington Industries M17/176-00002-10	78 Ohms	Blue			-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated	3.05 m	10 ft
Remington Industries M17/176-00002-2	78 Ohms	Blue			-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated	610 mm	2 '
Remington Industries M17/176-00002-1	78 Ohms	Blue			-55 °C	250 °C	Braid	24 AWG	Perfluoroalkoxy (PFA)	100 %	Twinaxial	Copper Alloy Silver Coated	Perfluoroalkoxy (PFA)	Copper Silver Coated	300 mm	1 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.19

Description

General part information

M17/176 Series

Twinaxial Cable 24 AWG 4.0' (1.22m) 78 Ohms
