T21MU3KAI

Active

Temprel

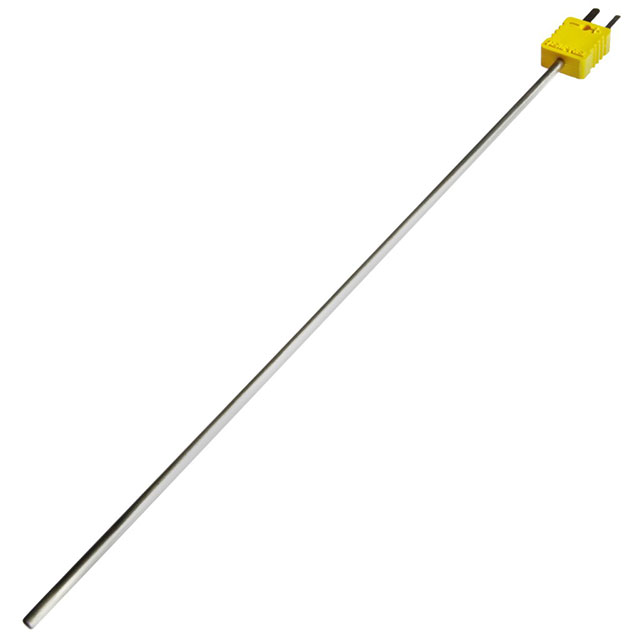

3" PROBE LENGTH X 1/16" PROBE DI

Search across all available documentation for this part.

Active

Temprel

3" PROBE LENGTH X 1/16" PROBE DI

Technical Specifications

Parameters and characteristics for this part

Specification	T21MU3KAI

Plug Color	Yellow
Plug Type	Sub-Mini (Thermocouple Plug)
Probe Length	3 in
Probe Length	76.2 mm
Probe Material	Inconel
Probe Temperature Range [Max]	1250 °C
Probe Temperature Range [Min]	-200 °C
Tip Type	Immersion / Penetration, Rounded
Type	K-Type Thermocouple
Usage	Semi Solids, Liquids

Part	Type	Plug Type	Probe Material	Plug Color	Probe Length	Probe Length	Probe Temperature Range [Max]	Probe Temperature Range [Min]	Usage	Tip Type
Temprel T21MU3KAI	K-Type Thermocouple	Sub-Mini (Thermocouple Plug)	Inconel	Yellow	3 in	76.2 mm	1250 °C	-200 °C	Liquids Semi Solids	Immersion / Penetration Rounded
Temprel T21MU3KCI	K-Type Thermocouple	Sub-Mini (Thermocouple Plug)	Inconel	Yellow	3 in	76.2 mm	1250 °C	-200 °C	Liquids Semi Solids	Immersion / Penetration Rounded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.69

General part information

K-Type Thermocouple Immersion / Penetration, Rounded -328 ~ 2282°F (-200 ~ 1250°C)
