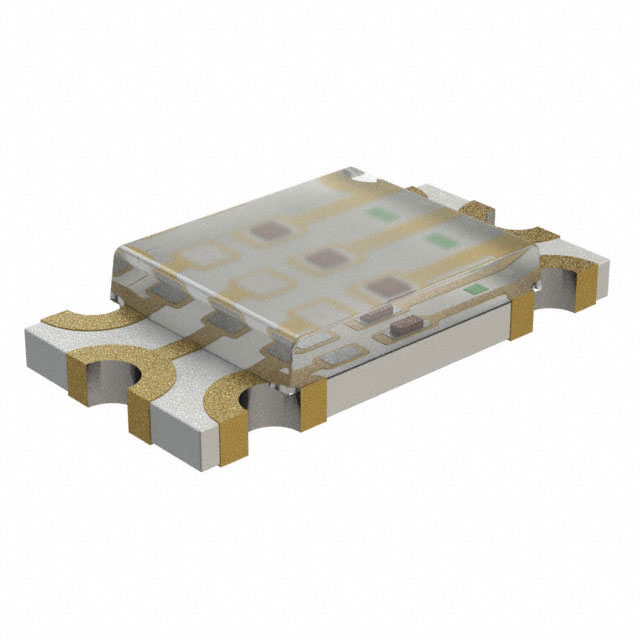

APTF3216QBDZGSURKC

Active

Kingbright

LED RGB CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED RGB CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Mounting Type	Lens Size [y]	Lens Size [x]	Package / Case	Lens Style	Supplier Device Package	Lens Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Color	Lens Transparency	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
Kingbright APTF3216SURKCGKQBDC	470 nm 570 nm 630 nm	1.6 mm	3.2 mm	120 °	250 mcd	80 mcd	55 mcd	Independent	574 nm	468 nm	650 nm	2.1 V	3.3 V	1.95 V	Surface Mount	1.6 mm	2 mm	1206 (3216 Metric)	Rectangle with Flat Top	SMD	Colorless	20 mA	20 mA	20 mA	Blue Green Red	Clear
Kingbright APTF3216QBDZGSURKC	470 nm 525 nm 630 nm	1.6 mm	3.2 mm	120 °				Independent	515 nm	468 nm	650 nm				Surface Mount	1.6 mm	2 mm	1206 (3216 Metric)	Rectangle with Flat Top	SMD	Colorless	20 mA	20 mA	20 mA	Blue Green Red	Clear	80 mcd 250 mcd 350 mcd
Kingbright APTF3216SEEZGQBDC	470 nm 525 nm 621 nm	1.6 mm	3.2 mm	120 °	400 mcd	80 mcd	350 mcd	Independent							Surface Mount	1.6 mm	2 mm	1206 (3216 Metric)	Rectangle with Flat Top	SMD	Colorless	20 mA	20 mA	20 mA	Blue Green Red	Clear		2 V 3.3 V 3.3 V	468 nm 515 nm 630 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 630nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 1206 (3216 Metric)
