T77S1D10-05
ActiveTE Connectivity Potter & Brumfield Relays

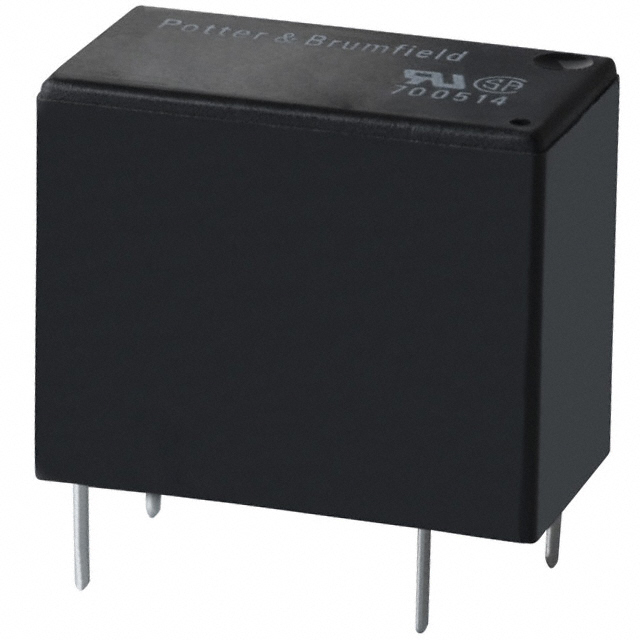

RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T77S1D10-05
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T77S1D10-05 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 90 mA |
| Coil Insulation | Class F |
| Coil Resistance | 55.6 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2500 VA, 300 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
