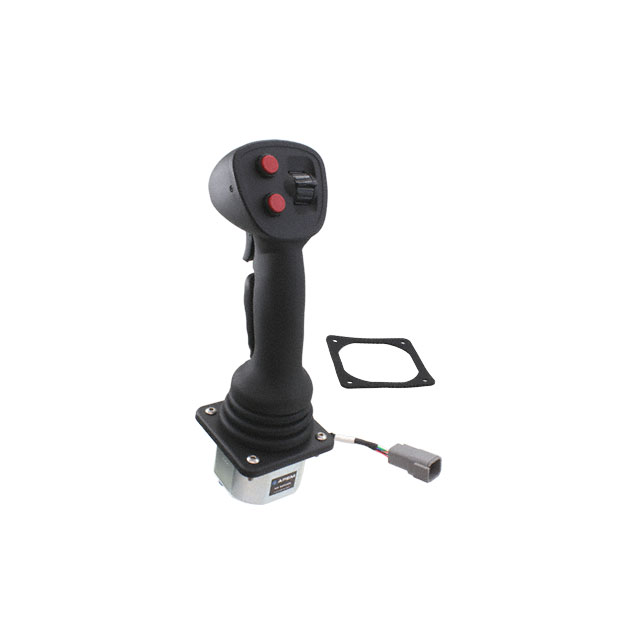

XDGTY2MNNCYYPAN

Active

APEM

SWITCH JOYSTICK HALL EFFECT

Search across all available documentation for this part.

Active

APEM

SWITCH JOYSTICK HALL EFFECT

Technical Specifications

Parameters and characteristics for this part

Specification	XDGTY2MNNCYYPAN

Actuator Type	Joystick
Functions, Extra	2-Way Thumbwheel, Index Trigger, 2 Pushbuttons, Deadman
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Operating Force	125 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Digital (Hall Effect Over CANbus Interface)
Panel Cutout Dimensions [custom]	66.29 mm˛
Switch Function	2-Way Directional
Termination Style	Connector
Type	Joystick, 1 - Axis
Voltage - Supply [Max]	35 V
Voltage - Supply [Min]	6 V

Part	Operating Force	Actuator Type	Panel Cutout Dimensions [custom]	Type	Termination Style	Ingress Protection	Output	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Functions, Extra	Voltage - Supply [Min]	Voltage - Supply [Max]	Switch Function
APEM XDGTY2MNNCYYPAN	125 gf	Joystick	66.29 mm˛	Joystick 1 - Axis	Connector	IP67 - Dust Tight Waterproof	Digital (Hall Effect Over CANbus Interface)	10000000 Cycles	85 °C	-40 °C	2 Pushbuttons 2-Way Thumbwheel Deadman Index Trigger	6 V	35 V	2-Way Directional

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3139.26

General part information

Joystick, 1 - Axis Digital (Hall Effect Over CANbus Interface) Output
