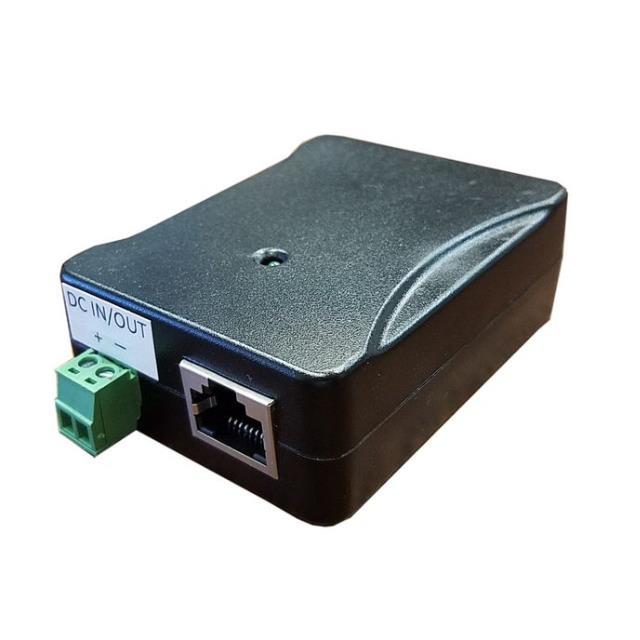

POE-INJ-1000-WT

Active

Tycon Systems Inc.

PASSIVE GIGABIT POE INJECTOR/SPL

Search across all available documentation for this part.

Active

Tycon Systems Inc.

PASSIVE GIGABIT POE INJECTOR/SPL

Technical Specifications

Parameters and characteristics for this part

Specification	POE-INJ-1000-WT

Current - Output	2.25 A
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
For Use With/Related Products	Ethernet, RJ45
Input Connector	RJ45 (Data, Power)
Mounting Type	Desktop
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	130 W
Size / Dimension [x]	71.1 mm
Size / Dimension [x]	2.8 in
Size / Dimension [y]	2.1 in
Size / Dimension [y]	53.3 mm
Size / Dimension [z]	24.13 mm
Size / Dimension [z]	24.1 mm
Type	PoE Injector/Splitter, Splitter
Voltage - Input [Max]	58 V
Voltage - Input [Min]	5 V

Part	For Use With/Related Products	Output Connector	Power (Watts) - Per Port	Current - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Ports	Voltage - Input [Max]	Voltage - Input [Min]	Data Rate	Input Connector
Tycon Systems Inc. POE-INJ-1000-WT	Ethernet RJ45	RJ45 (Data Power)	130 W	2.25 A	71.1 mm	2.1 in	24.13 mm	2.8 in	24.1 mm	53.3 mm	PoE Injector/Splitter Splitter	85 °C	-40 °C	Desktop	1	58 V	5 V	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)
Tycon Systems Inc. POE-INJ-LED-S	Cat5 Ethernet										PoE Injector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Over Ethernet (POE) 1 Port Splitter 10/100/1000 Mbps Data Rate

Technical documentation and resources
