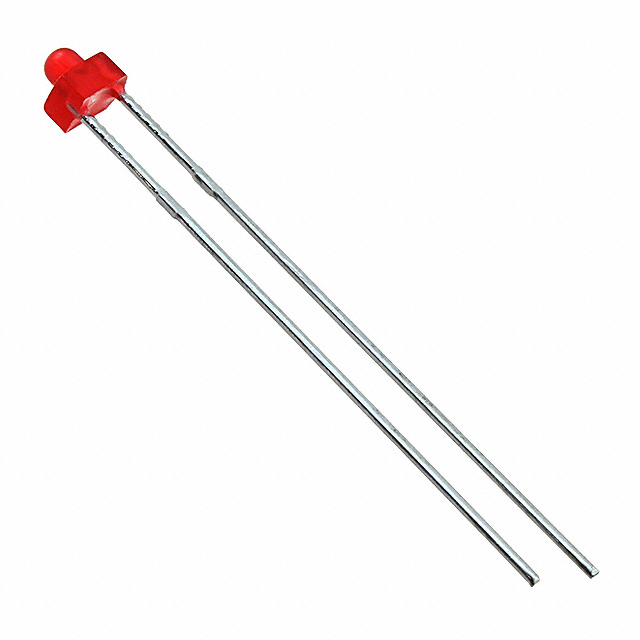

WP2060ID

Active

Kingbright

LED RED DIFFUSED RADIAL LEAD T/H

Search across all available documentation for this part.

Active

Kingbright

LED RED DIFFUSED RADIAL LEAD T/H

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Angle	Package / Case	Mounting Type	Configuration	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Current - Test	Lens Transparency	Lens Color	Height (Max) [Max] [z]	Supplier Device Package	Color	Lens Size [diameter]	Wavelength - Peak	Lens Style	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)
Kingbright WP2060ID	70 °	Radial	Through Hole	Standard	3.3 mm	2.4 mm	15 mcd	20 mA	Diffused	Red	3.1 mm	Radial Lead	Red	1.8 mm	627 nm	Round with Domed Top	625 nm	2 V
Kingbright WP2060SRD	70 °	Radial	Through Hole	Standard	3.3 mm	2.4 mm	200 mcd	20 mA	Diffused	Red	3.1 mm	Radial Lead	Red	1.8 mm	660 nm	Round with Domed Top	640 nm	1.85 V
Kingbright WP2060GD	70 °	Radial	Through Hole	Standard	3.3 mm	2.4 mm	10 mcd	20 mA	Diffused	Green	3.1 mm	Radial Lead	Green	1.8 mm	565 nm	Round with Domed Top	568 nm	2.2 V
Kingbright WP2060YD	70 °	Radial	Through Hole	Standard	3.3 mm	2.4 mm	8 mcd	20 mA	Diffused	Yellow	3.1 mm	Radial Lead	Yellow	1.8 mm	590 nm	Round with Domed Top	588 nm	2.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 625nm LED Indication - Discrete 2V Radial
