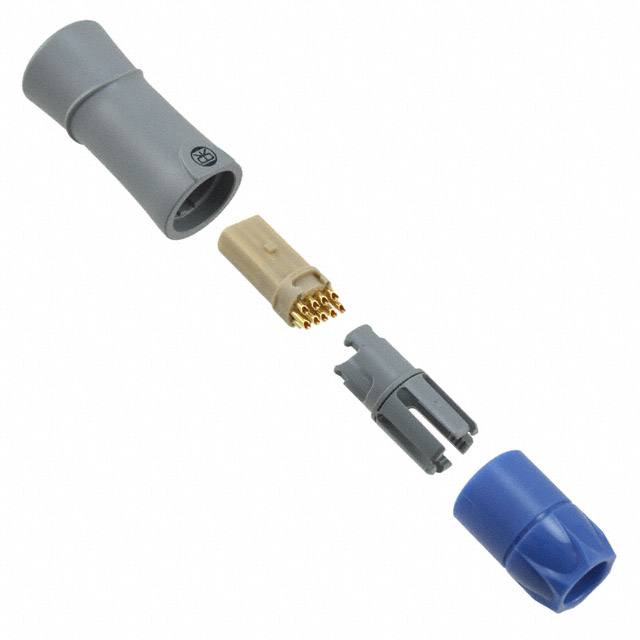

XRN.M13.GLL.6GZ

Obsolete

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Search across all available documentation for this part.

Obsolete

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	XRN.M13.GLL.6GZ

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Sulfone
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	N
Primary Material	Plastic
Shell Material	Sulfone
Shell Size - Insert	M13
Shielding	Unshielded

Part	Number of Positions	Shielding	Applications	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Shell Size - Insert	Connector Type	Color	Features	Backshell Material, Plating	Fastening Type	Contact Finish - Mating	Ingress Protection	Orientation	Shell Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)
LEMO XRN.M13.GLL.6GZ	13	Unshielded	Industrial Measurement Medical Testing Equipment	0.209 in 0.256 in	5.3 mm 6.5 mm	Polyetheretherketone (PEEK)	M13	Receptacle Female Sockets	Gray	Backshell	Sulfone	Push-Pull	Gold	IP50	N	Sulfone	Plastic	-50 °C	170 °C	Free Hanging (In-Line)	4 A
LEMO XRN.M13.GLL.6G	13	Unshielded	Industrial Measurement Medical Testing Equipment	0.209 in 0.256 in	5.3 mm 6.5 mm	Polyetheretherketone (PEEK)	M13	Receptacle Female Sockets	Gray	Backshell	Sulfone	Push-Pull	Gold	IP50	N	Sulfone	Plastic	-50 °C	170 °C	Free Hanging (In-Line)	4 A
LEMO XRN.M13.GLL.6A	13	Unshielded	Industrial Measurement Medical Testing Equipment	0.209 in 0.256 in	5.3 mm 6.5 mm	Polyetheretherketone (PEEK)	M13	Receptacle Female Sockets	Blue Gray	Backshell	Sulfone	Push-Pull	Gold	IP50	N	Sulfone	Plastic	-50 °C	170 °C	Free Hanging (In-Line)	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

13 Position Circular Connector Receptacle, Female Sockets Solder Cup
