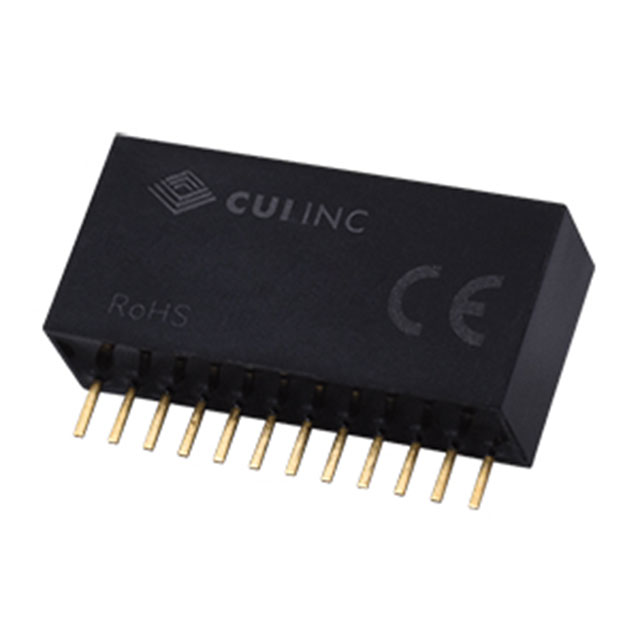

P783-Q24-S5-S

CUI Inc.

DC DC CONVERTER 5V 15W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
CUI Inc. P783-Q24-S12-S	Non-Isolated PoL Module	Through Hole	1.2 "	30.6 mm	5.8 mm	0.23 in	12.5 mm	0.49 in	12-SIP Module	36 W	1	3 A	36 V	12 V	16 V	ITE (Commercial)	97 %	85 °C	-40 °C	CE
CUI Inc. P783-Q24-S5-S	Non-Isolated PoL Module	Through Hole	1.2 "	30.6 mm	5.8 mm	0.23 in	12.5 mm	0.49 in	12-SIP Module	15 W	1	3 A	36 V	5 V	8 V	ITE (Commercial)	93 %	85 °C	-40 °C	CE
CUI Inc. P783-Q24-S9-S	Non-Isolated PoL Module	Through Hole	1.2 "	30.6 mm	5.8 mm	0.23 in	12.5 mm	0.49 in	12-SIP Module	27 W	1	3 A	36 V	9 V	13 V	ITE (Commercial)	95 %	85 °C	-40 °C	CE
CUI Inc. P783-Q24-S6-S	Non-Isolated PoL Module	Through Hole	1.2 "	30.6 mm	5.8 mm	0.23 in	12.5 mm	0.49 in	12-SIP Module	20 W	1	3 A	36 V	6.5 V	10 VDC	ITE (Commercial)	94 %	85 °C	-40 °C	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 15.95

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 5V 3A 8V - 36V Input

Technical documentation and resources

No documents available
