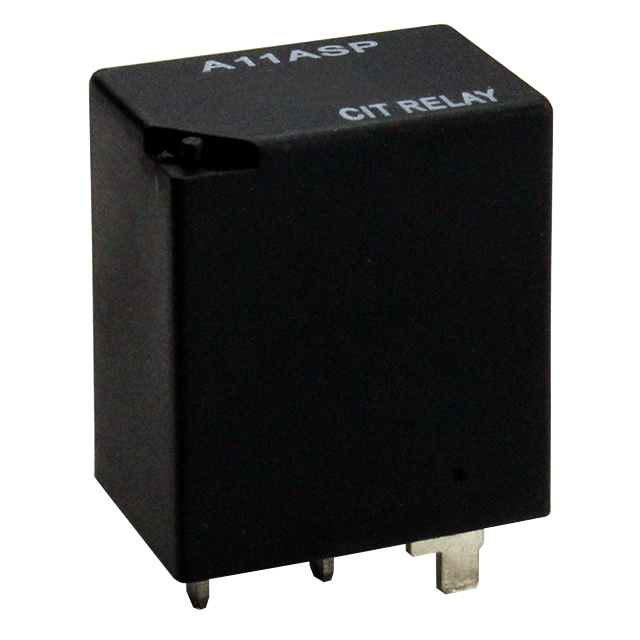

A11ASP24VDC1.5

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Relays Datasheet

A11ASP24VDC1.5

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 24V

Deep-Dive with AI

DocumentsA Series Relays Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A11ASP24VDC1.5

Coil Current	62.5 mA
Coil Power	1.5 W
Coil Resistance	384 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A
Features	Sealed - Fully
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	7 ms
Switching Voltage	75 VDC
Termination Style	PC Pin

A11ASP Series

Part	Contact Material	Coil Resistance	Release Time	Coil Power	Coil Voltage	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type	Termination Style	Switching Voltage	Coil Current	Contact Rating (Current)	Contact Form	Must Operate Voltage	Must Release Voltage	Mounting Type
CIT Relay and Switch A11ASP12VDC1.2D	Silver Tin Oxide (AgSnO)	120 Ohms	7 ms	1.2 W	12 VDC	Diode Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	100 mA	30 A	SPST-NO (1 Form A)	8.4 VDC	1.2 VDC	Through Hole
CIT Relay and Switch A11ASP24VDC1.5	Silver Tin Oxide (AgSnO)	384 Ohms	7 ms	1.5 W	24 VDC	Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	62.5 mA	30 A	SPST-NO (1 Form A)	18 VDC	2.4 VDC	Through Hole
CIT Relay and Switch A11ASP24VDC1.5R	Silver Tin Oxide (AgSnO)	384 Ohms	7 ms	1.5 W	24 VDC	Resistor Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	62.5 mA	30 A	SPST-NO (1 Form A)	18 VDC	2.4 VDC	Through Hole
CIT Relay and Switch A11ASP24VDC1.2D	Silver Tin Oxide (AgSnO)	480 Ohms	7 ms	1.2 W	24 VDC	Diode Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	50 mA	30 A	SPST-NO (1 Form A)	18 VDC	2.4 VDC	Through Hole
CIT Relay and Switch A11ASP12VDC1.2	Silver Tin Oxide (AgSnO)	120 Ohms	7 ms	1.2 W	12 VDC	Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	100 mA	30 A	SPST-NO (1 Form A)	8.4 VDC	1.2 VDC	Through Hole
CIT Relay and Switch A11ASP12VDC1.5D	Silver Tin Oxide (AgSnO)	96 Ohms	7 ms	1.5 W	12 VDC	Diode Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	125 mA	30 A	SPST-NO (1 Form A)	8.4 VDC	1.2 VDC	Through Hole
CIT Relay and Switch A11ASP24VDC1.2	Silver Tin Oxide (AgSnO)	480 Ohms	7 ms	1.2 W	24 VDC	Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	50 mA	30 A	SPST-NO (1 Form A)	18 VDC	2.4 VDC	Through Hole
CIT Relay and Switch A11ASP24VDC1.5D	Silver Tin Oxide (AgSnO)	384 Ohms	7 ms	1.5 W	24 VDC	Diode Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	62.5 mA	30 A	SPST-NO (1 Form A)	18 VDC	2.4 VDC	Through Hole
CIT Relay and Switch A11ASP12VDC1.5	Silver Tin Oxide (AgSnO)	96 Ohms	7 ms	1.5 W	12 VDC	Sealed - Fully	85 °C	-40 °C	10 ms	Non Latching	PC Pin	75 VDC	125 mA	30 A	SPST-NO (1 Form A)	8.4 VDC	1.2 VDC	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.21
		10	$ 1.13
		25	$ 1.01
		50	$ 0.96
		100	$ 0.91
		250	$ 0.89

Description

General part information

A11ASP Series

RELAY AUTOMOTIVE SPST 30A 24V

Documents

Technical documentation and resources

A Series Relays

Datasheet
