2M809-001

Active

Amphenol Aerospace Operations

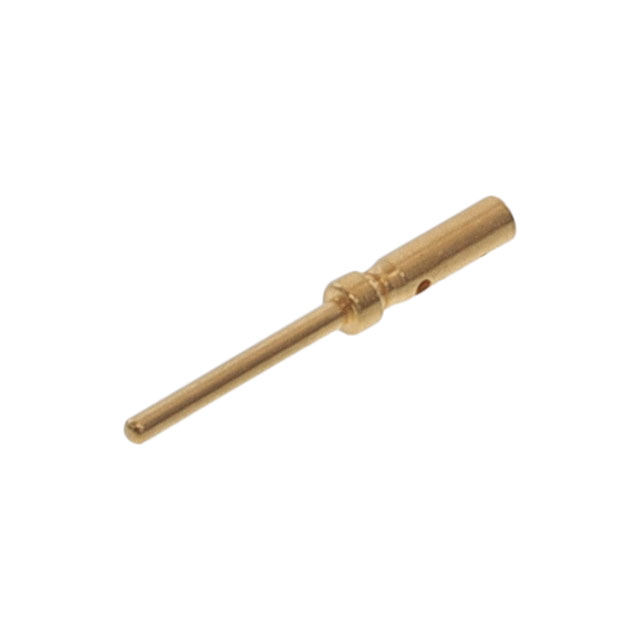

CONTACT PIN 22-28AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONTACT PIN 22-28AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Contact Material	Type	Contact Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Size	Contact Termination	For Use With/Related Products	Tool Type
Amphenol Aerospace Operations 2M809-001	Gold	Copper Alloy	Power Machined	Pin	28 AWG	22 AWG	23	Crimp
Amphenol Aerospace Operations 2M809-20HDR									Circular Contacts	Extraction Tool
Amphenol Aerospace Operations 2M809-088									Circular Contacts	Insertion/Extraction Tool

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pin Contact 22-28 AWG Size 23 Crimp Gold
