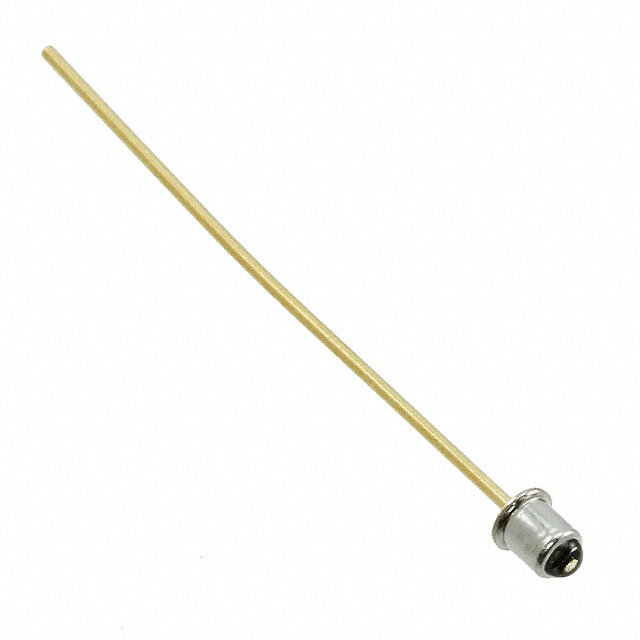

OP515B
ActiveTT Electronics/Optek Technology
SENSOR PHOTO 935NM TOP VIEW COAX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OP515B
ActiveTT Electronics/Optek Technology
SENSOR PHOTO 935NM TOP VIEW COAX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OP515B |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Top View |
| Package / Case | Coaxial, Metal Can |
| Power - Max [Max] | 100 mW |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 935 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.55 | |
| 100 | $ 6.18 | |||
| 250 | $ 5.95 | |||
| 500 | $ 5.73 | |||
| 1000 | $ 5.51 | |||
Description
General part information
OP515 Series
Phototransistors 935nm Top View Coaxial, Metal Can
