Q-0104C0001108i

Active

Amphenol Custom Cable

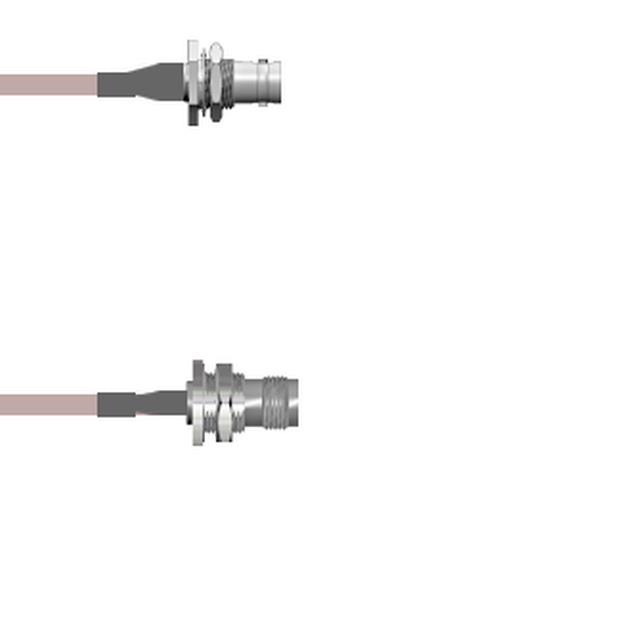

CBL ASSY BNC-TNC JACK-JACK 9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-JACK 9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0104C0001108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to TNC

Part	1st Contact Gender	1st Connector Mounting Type	Style	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	Cable Type	1st Connector Mounting Feature	2nd Connector	2nd Connector Mounting Feature	1st Connector	Color	Features	Overall Impedance	2nd Connector Mounting Type
Amphenol Custom Cable Q-0104C0001108i	Female	Panel Mount	BNC to TNC	2.7 m	9 ft	108 in	4 GHz	Female	RG-178	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	BNC Jack	Copper	Shielded	50 Ohms	Panel Mount
Amphenol Custom Cable Q-0104C0001012i	Female	Panel Mount	BNC to TNC	304.8 mm		12 "	4 GHz	Female	RG-178	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	BNC Jack	Copper	Shielded	50 Ohms	Panel Mount
Amphenol Custom Cable Q-0104C0001072i	Female	Panel Mount	BNC to TNC	1.8 m	6 ft	72 in	4 GHz	Female	RG-178	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	BNC Jack	Copper	Shielded	50 Ohms	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to TNC RG-178 108.0" (2.7m) 9.0'
