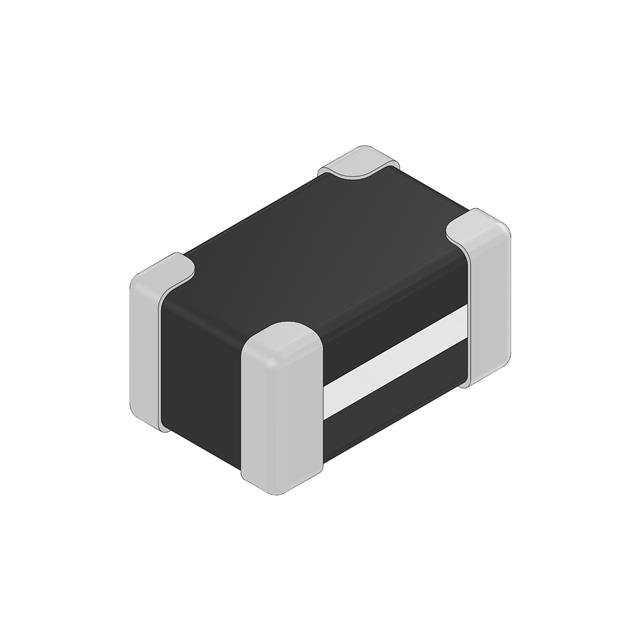

MCM2012B161GBEDG
ActiveINPAQ Technology Co., Ltd
CMC 400MA 2LN 160 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MCM2012B161GBEDG
ActiveINPAQ Technology Co., Ltd
CMC 400MA 2LN 160 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCM2012B161GBEDG |
|---|---|
| Current Rating (Max) [Max] | 400 mA |
| DC Resistance (DCR) (Max) [Max] | 400 mOhm |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Impedance @ Frequency | 160 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 (2012 Metric) |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Voltage Rating - DC | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.21 | ||
| 10 | $ 0.13 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| Tape & Reel (TR) | 3000 | $ 0.03 | ||
| 6000 | $ 0.03 | |||
| 9000 | $ 0.03 | |||
| 15000 | $ 0.03 | |||
| 21000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.03 | |||
| 300000 | $ 0.03 | |||
Description
General part information
MCM2012B161GBEDG
2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 400mA DCR 400mOhm
