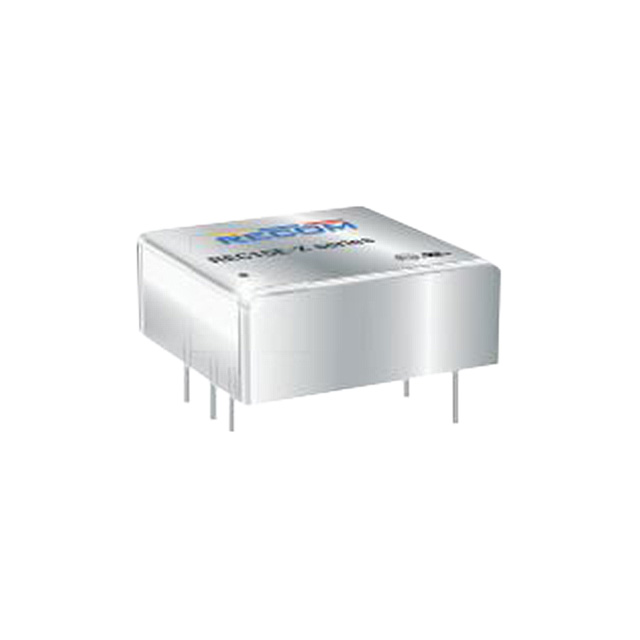

REC15E-4815DZ

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 15 W, 2 OUTPUT, 15 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Product Page EN +1

REC15E-4815DZ

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 15 W, 2 OUTPUT, 15 V

Deep-Dive with AI

DocumentsDatasheet Manufacturer Product Page EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC15E-4815DZ

Applications	ITE (Commercial)
Current - Output (Max)	500 mA
Current - Output (Max)	500 mA
Features	UVLO, OCP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

REC15E-483.3 Series

Isolated DC/DC Converters - SMD 15W 9-36Vin 24Vout 625mA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Applications	Features	Type	Number of Outputs	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Package / Case
RECOM Power REC15E-4812SZ	-40 °C	105 C	89 %	15 W	1.25 A	18 V	12 V	75 V	6-DIP Module	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm
RECOM Power REC15E-2415SZ/X2	-40 °C	105 C	89 %	15 W	1 A	9 V	15 V	36 V	6-DIP Module 4 Leads	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm
RECOM Power REC15E-4815DZ	-40 °C	105 C		15 W		18 V	15 V	75 V	6-DIP Module	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	2	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm	500 mA	500 mA	-15 V
RECOM Power REC15E-4815SZ/X2	-40 °C	105 C		15 W	1 A	18 V	15 V	75 V	6-DIP Module 4 Leads	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm
RECOM Power REC15E-243.3SZ	-40 °C	105 C	85 %	13 W	4 A	9 V	3.3 V	36 V	6-DIP Module	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm
RECOM Power REC15E-483.3SZ/X2	-40 °C	105 C	85 %	13 W	4 A	18 V	3.3 V	75 V	6-DIP Module 4 Leads	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm
RECOM Power REC15E-2415DZ/X2	-40 °C	105 C	89 %	15 W		9 V	15 V	36 V	6-DIP Module	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	2	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm	500 mA	500 mA	-15 V	5 Leads
RECOM Power REC15E-4812SZ/X2	-40 °C	105 C	89 %	15 W	1.25 A	18 V	12 V	75 V	6-DIP Module 4 Leads	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm
RECOM Power REC15E-4805SZ	-40 °C	105 C	88 %	15 W	3 A	18 V	5 V	75 V	6-DIP Module	2000 V	ITE (Commercial)	OCP SCP UVLO	Isolated Module	1	Through Hole	25.4 mm	0.39 in	10 mm	25.4 mm	1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 34.95
		5	$ 34.17
		10	$ 33.90
		25	$ 33.37
		50	$ 31.78
		100	$ 29.97
		250	$ 28.61
Newark	Each	5	$ 43.22
		10	$ 40.08
		25	$ 36.93
		50	$ 34.62
		100	$ 32.73
		250	$ 29.80
Sager	N/A	1	$ 34.95
		5	$ 33.82
		10	$ 32.27
		25	$ 31.31
		50	$ 30.85
		100	$ 29.97
		250	$ 27.96

Description

General part information

REC15E-483.3 Series

Isolated DC/DC Converters - SMD 15W 9-36Vin 24Vout 625mA

Documents

Technical documentation and resources

Datasheet

Manufacturer Product Page EN

Datasheet

Document
