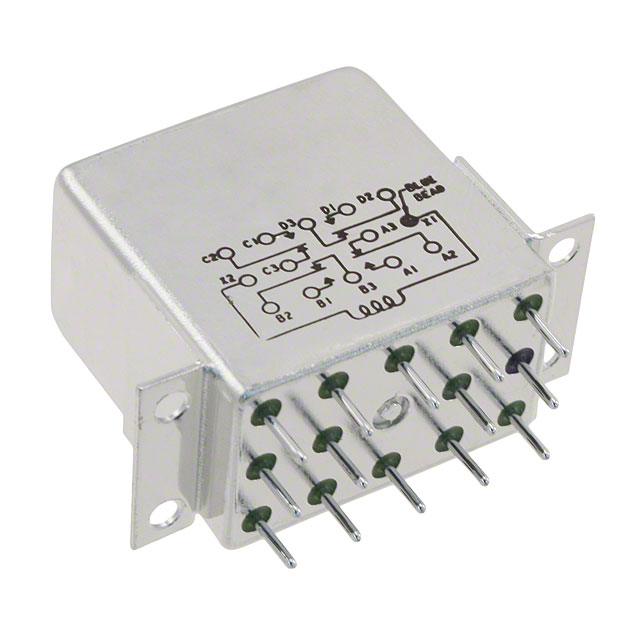

1-1617050-2
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE 4PDT 2A 26.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1617050-2
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE 4PDT 2A 26.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1617050-2 |
|---|---|
| Coil Current | 53 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 26.5 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching [Max] | 56 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15 | $ 1396.84 | |
Description
General part information
1617050 Series
General Purpose Relay 4PDT (4 Form C) Chassis Mount
