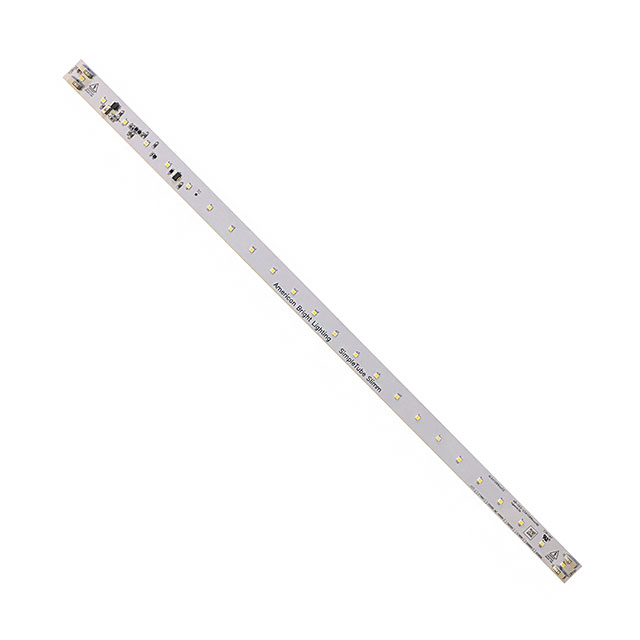

AB-GES-L54108W304N3

Active

American Bright Optoelectronics Corporation

LED ENG AB-GES WH LNR STRP 3000K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED ENG AB-GES WH LNR STRP 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-GES-L54108W304N3

CCT (K)	3000 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Lens Type	Flat
Luminous Flux @ Current/Temperature	880 lm
Size / Dimension [x]	542 mm
Size / Dimension [y]	20 mm
Type	LED Engine
Voltage - Forward (Vf) (Typ)	120 VAC

Part	Type	Configuration	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Color	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Lens Type	Height [z]	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]
American Bright Optoelectronics Corporation AB-GES-L27204W404N3	LED Engine	Linear Light Strip	4000 K	20 mm	271 mm	500 lm	Neutral White	230 VAC	80	Flat
American Bright Optoelectronics Corporation AB-GES-S04124W30NN1	LED Engine	Square	3000 K	40 mm	40 mm	2100 lm	Warm White	120 VAC	80	Flat	1.6 mm	18.8 mm
American Bright Optoelectronics Corporation AB-GES-L54108W304N3	LED Engine	Linear Light Strip	3000 K	20 mm	542 mm	880 lm	Warm White	120 VAC	80	Flat
American Bright Optoelectronics Corporation AB-GES-L08103W404T1	LED Engine	Linear Light Strip	4000 K	24 mm	76 mm	280 lm	Neutral White	120 VAC	80	Flat
American Bright Optoelectronics Corporation AB-GES-L28112W404T2	LED Engine	Linear Light Strip	4000 K	24 mm	280 mm	1400 lm	Neutral White	120 VAC	80	Flat
American Bright Optoelectronics Corporation AB-GES-P28212W30BFT2	LED Engine	Linear Light Strip Plug and Play	3000 K	2.7 mm	304.8 mm	1000 lm	Warm White	230 VAC	80	Tubular	17.5 mm
American Bright Optoelectronics Corporation AB-GES-L15106W404T1	LED Engine	Linear Light Strip	4000 K	24 mm	150 mm	630 lm	Neutral White	120 VAC	80	Flat
American Bright Optoelectronics Corporation AB-GES-C02104W30NN2	LED Engine	Round	3000 K			300 lm	Warm White	120 VAC	80	Flat			25.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 19.17

General part information

LED Lighting COBs Engines Modules LED Engine AB-GES White, Warm Linear Light Strip
