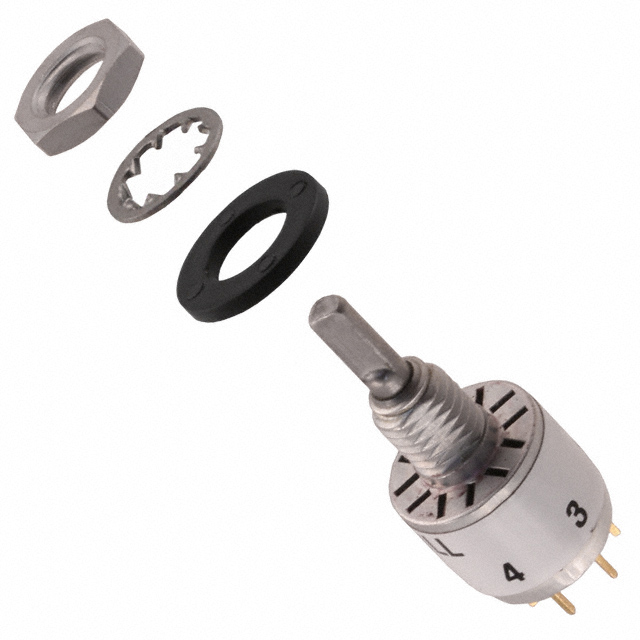

50DP60-01-1-AJN

Active

Grayhill Inc.

SWITCH ROTARY 2-6POS 150MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 2-6POS 150MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	50DP60-01-1-AJN

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Circuit per Deck	SP6T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	13.64 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Number of Positions [Max]	Number of Positions [Min]	Circuit per Deck	Contact Timing	Number of Decks [custom]	Mounting Type	Number of Poles per Deck	Voltage Rating - AC	Actuator Type [diameter]	Actuator Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Depth Behind Panel [z]	Index Stops	Current Rating (Amps)	Contact Finish	Actuator Length [x]	Termination Style
Grayhill Inc. 50DP60-01-1-AJN	6	2	SP6T	Non-Shorting	1	Panel Mount Through Hole	1	115 V	3.17 mm	Flatted	28 V	6.45 mm	13.64 mm	Adjustable	150 mA 200 mA	Gold	9.53 mm	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 6 Position SP6T 150mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
