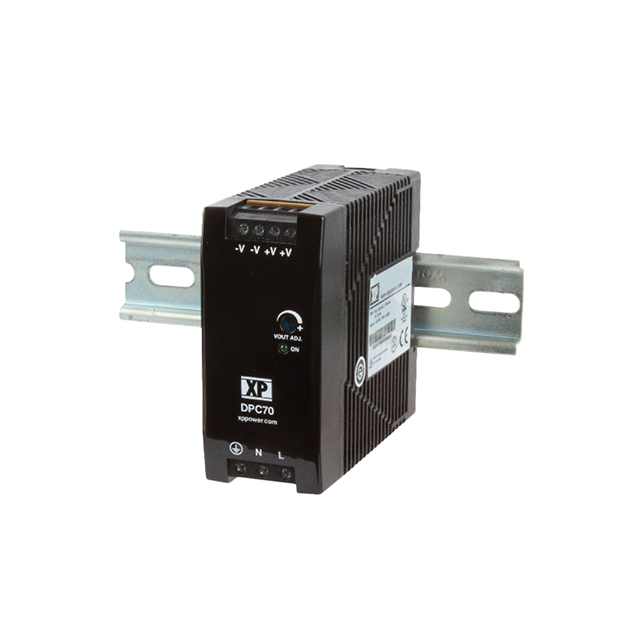

DPC70US12

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 12V 70W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 12V 70W

Technical Specifications

Parameters and characteristics for this part

Specification	DPC70US12

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	5.5 A
Efficiency	89 %
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	70 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.59 "
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	3.6 in
Size / Dimension [z]	90 mm
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Input Type	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Minimum Load Required	Efficiency	Standard Number	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Voltage - Output 1
XP POWER DPC70US12	AC	1	85 VAC	264 VAC		89 %	62368-1	3000 V	5.5 A	ITE (Commercial)	CE	-25 °C	70 °C	Adjustable Output Universal Input	100 mm	3.94 in	3.6 in	90 mm	1.59 "	40.5 mm	70 W	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 12V 70W
