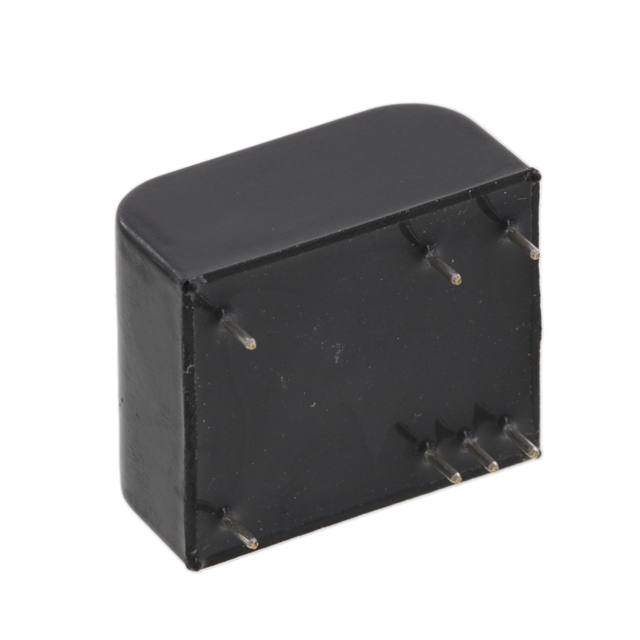

BPWX 0.5-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1/2W

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1/2W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Mounting Type	Type	Package / Case	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Power (Watts)	Current - Output (Max)
Cita Technologies, LLC. BPWX 0.5-08-00	ITE (Commercial)	85 °C	-40 °C	CB cURus	Through Hole	Enclosed	7-DIP Module	70 %	1	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	8 V	90 VAC	308 VAC
Cita Technologies, LLC. BPWX 0.5-14-33	ITE (Commercial)	85 °C	-40 °C	CB cURus	Through Hole	Enclosed	7-DIP Module	70 %	2	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	14 V	90 VAC	308 VAC	36 mA	23 mA	441 mW
Cita Technologies, LLC. BPWX 0.5-08-33	ITE (Commercial)	85 °C	-40 °C	CB cURus	Through Hole	Enclosed	7-DIP Module	70 %	2	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	8 V	90 VAC	308 VAC			632 mW	53 mA 63 mA
Cita Technologies, LLC. BPWX 0.5-14-00	ITE (Commercial)	85 °C	-40 °C	CB cURus	Through Hole	Enclosed	7-DIP Module	70 %	1	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	14 V	90 VAC	308 VAC
Cita Technologies, LLC. BPWX 0.5-14-50	ITE (Commercial)	85 °C	-40 °C	CB cURus	Through Hole	Enclosed	7-DIP Module	70 %	2	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	14 V	90 VAC	308 VAC			572 mW	28 mA 36 mA
Cita Technologies, LLC. BPWX 0.5-08-50	ITE (Commercial)	85 °C	-40 °C	CB cURus	Through Hole	Enclosed	7-DIP Module	70 %	2	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	8 V	90 VAC	308 VAC	63 mA		819 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 8V 90 ~ 308 VAC Input
