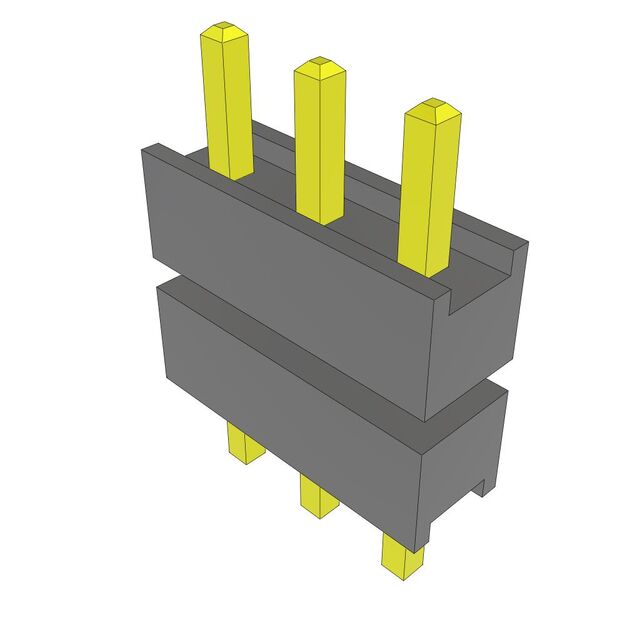

ZW-03-07-T-S-230-100

Active

Samtec Inc.

CONN BOARD STACKER HDR 3 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXW Print ZW Datasheet +2

ZW-03-07-T-S-230-100

Active

Samtec Inc.

CONN BOARD STACKER HDR 3 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsXW Print ZW Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-03-07-T-S-230-100

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	0.1 in
Length - Post (Mating) [x]	2.54 mm
Length - Tail [x]	0.1 "
Length - Tail [x]	2.54 mm
Mounting Type	Through Hole
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

ZW-03-07 Series

Part	Length - Stack Height [x]	Length - Stack Height [x]	Color	Termination	Length - Tail [x]	Length - Tail [x]	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Number of Rows	Length - Tail	Length - Tail	Length - Tail	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Number of Positions	Length - Tail [custom]
Samtec Inc. ZW-03-07-T-S-250-090	0.25 in	6.35 mm	Black	Solder	2.286 mm	0.09 in	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.09 in	2.286 mm	Tin	1
Samtec Inc. ZW-03-07-T-S-230-100			Black	Solder	2.54 mm	0.1 "	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.1 in	2.54 mm	Tin	1
Samtec Inc. ZW-03-07-T-S-300-065	0.3 in	7.62 mm	Black	Solder			Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.065 in	1.651 mm	Tin	1	1.651 mm	0.065 in
Samtec Inc. ZW-03-07-T-S-250-090-LL	0.25 in	6.35 mm	Black	Kinked Pin Solder	2.286 mm	0.09 in	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.09 in	2.286 mm	Tin	1
Samtec Inc. ZW-03-07-T-S-210-070	0.21 in	5.334 mm	Black	Solder			Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.15 in	3.81 mm	Tin	1	0.07 in		1.778 mm
Samtec Inc. ZW-03-07-G-D-220-110			Black	Solder	2.794 mm	0.11 in	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	2				0.25 Ám	10 Áin	0.1 in	2.54 mm	6
Samtec Inc. ZW-03-07-T-S-250-089	0.25 in	6.35 mm	Black	Solder	2.261 mm	0.089 in	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.091 in	2.311 mm	Tin	1
Samtec Inc. ZW-03-07-T-S-210-085	0.21 in	5.334 mm	Black	Solder			Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.135 in	3.429 mm	Tin	1	2.159 mm								0.085 in
Samtec Inc. ZW-03-07-T-S-200-115			Black	Solder	2.921 mm	0.115 in	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	0.115 in	2.921 mm	Tin	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.28
		50	$ 0.22
		100	$ 0.18
		500	$ 0.14
		1000	$ 0.12
Digikey	Bulk	1	$ 0.29

Description

General part information

ZW-03-07 Series

3 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole

Documents

Technical documentation and resources

XW Print

Datasheet

ZW Datasheet

Datasheet

ZW-03-07-T-S-230-100

Deep-Dive with AI

ZW-03-07-T-S-230-100

Deep-Dive with AI

Technical Specifications

ZW-03-07 Series

Pricing

Description

ZW-03-07 Series

Documents

XW Print

ZW Datasheet

Datasheet

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

ZW-03-07 Series
