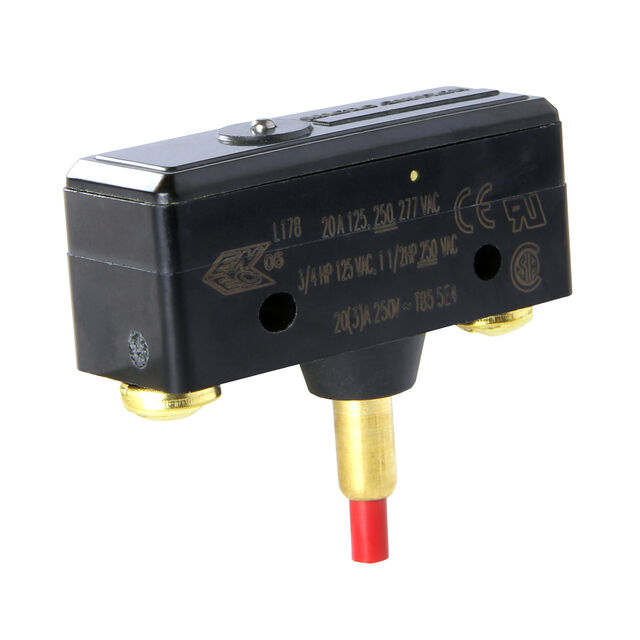

WA-1RX123-A4

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 1A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Switch Function	Mounting Type	Voltage Rating - AC	Operating Force [Min]	Operating Force [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Features	Operating Position	Operating Position	Overtravel	Overtravel	Actuator Type	Current Rating (Amps)
Honeywell Sensing and Productivity Solutions WA-1RX12-A4	20000000 Cycles	On-Off	Chassis Mount	125 V	113 gf	454 gf	85 °C	-55 °C	SPST-NC	Screw Terminal	Reset Plunger on Bottom	0.66 in	16.76 mm	0.25 mm	0.01 in	Round (Pin Plunger)	20 A
Honeywell Sensing and Productivity Solutions WA-1RX123-A4	20000000 Cycles	On-Off	Chassis Mount	125 V	113 gf	454 gf	85 °C	-55 °C	SPST-NC	Screw Terminal	Reset Plunger on Bottom	0.66 in	16.76 mm	0.25 mm	0.01 in	Round (Pin Plunger)	1 A
Honeywell Sensing and Productivity Solutions WA-1RX12-A41	20000000 Cycles	On-Off	Chassis Mount	125 V	113 gf	454 gf	85 °C	-55 °C	SPST-NC	Screw Terminal	Reset Plunger on Bottom	0.66 in	16.76 mm	0.25 mm	0.01 in	Round (Pin Plunger)	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NC Chassis Mount
