2905813

Active

Phoenix Contact

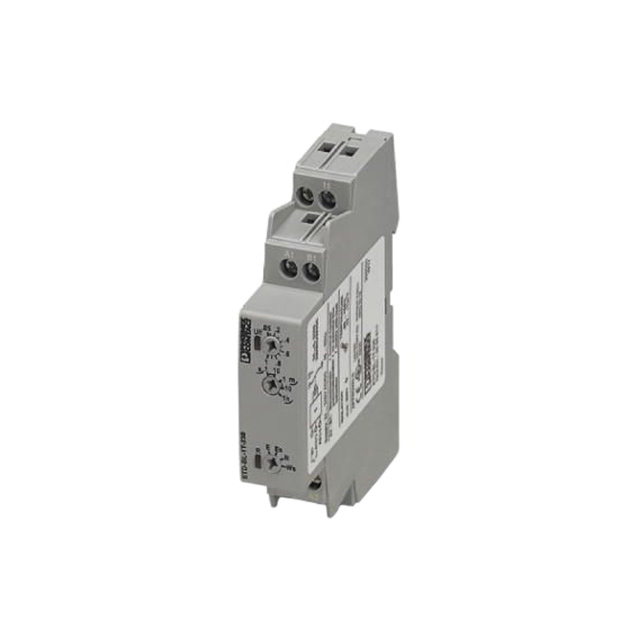

RELAY TIME DELAY 1HR 5A 250V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY TIME DELAY 1HR 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	2905813

Contact Rating @ Voltage	250 VAC, 5 A
Delay Time [Max]	1 Year
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Termination Style	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Delay Time [Max]	Delay Time [Min]	Mounting Type	Timing Initiate Method	Timing Adjustment Method	Contact Rating @ Voltage	Relay Type
Phoenix Contact 2905813	Screw Terminal	Programmable (Multi-Function)	24 VAC	240 VAC	1 Year	0.05 Sec	DIN Rail	Input Voltage	Screwdriver Slot	5 A 250 VAC	Mechanical Relay
Phoenix Contact 2905814	Spring Terminal	Programmable (Multi-Function)	24 VAC	240 VAC	1 Year	0.05 Sec	DIN Rail	Input Voltage	Screwdriver Slot	5 A 250 VAC	Mechanical Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 1 Hr Delay 5A @ 250VAC DIN Rail
