8P1P003210GRF01
ActiveMH Connectors

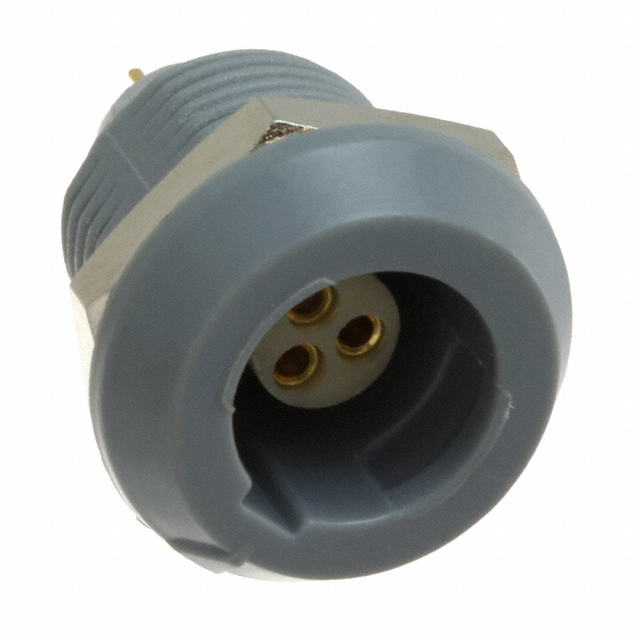

CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8P1P003210GRF01
ActiveMH Connectors
CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8P1P003210GRF01 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 7 µin |
| Contact Finish Thickness - Mating | 0.178 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polycarbonate (PC), Polyacrylonitrile Butadiene Styrene (ABS) |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 500 V |
8P1P003 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Primary Material | Current Rating (Amps) | Color | Insert Material | Fastening Type | Connector Type | Ingress Protection | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Termination | Contact Finish - Mating | Voltage Rating | Mounting Feature | Shell Material | Shielding | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Blue Gray | Polyphenylene Sulfide (PPS) | Push-Pull | Receptacle Female Sockets | IP50 | Copper Alloy | 7 µin | 0.178 µm | Panel Mount Right Angle Through Hole | Solder | Gold | 500 V | Bulkhead - Front Side Nut | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | |||||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Gray | Polyphenylene Sulfide (PPS) | Push-Pull | Receptacle Female Sockets | IP50 | Copper Alloy | 7 µin | 0.178 µm | Panel Mount Through Hole | Solder | Gold | 500 V | Bulkhead - Rear Side Nut | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | |||||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Polyphenylene Sulfide (PPS) | Push-Pull | Male Pins Plug | IP50 | Copper Alloy | 7 µin | 0.178 µm | Free Hanging (In-Line) | Gold | 500 V | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | 4 mm | 5 mm | 0.157 in | 0.197 in | Backshell Strain Relief | |||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Polyphenylene Sulfide (PPS) | Push-Pull | Receptacle Female Sockets | IP50 | Copper Alloy | 7 µin | 0.178 µm | Panel Mount Through Hole | Solder | Gold | 500 V | Bulkhead - Front Side Nut | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | ||||||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Gray Red | Polyphenylene Sulfide (PPS) | Push-Pull | Receptacle Female Sockets | IP50 | Copper Alloy | 7 µin | 0.178 µm | Gold | 500 V | Bulkhead - Front Side Nut | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | |||||||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Gray Green | Polyphenylene Sulfide (PPS) | Push-Pull | Male Pins Plug | IP50 | Copper Alloy | 7 µin | 0.178 µm | Free Hanging (In-Line) | Gold | 500 V | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | 5 mm | 6 mm | 0.197 in | 0.236 in | |||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Polyphenylene Sulfide (PPS) | Push-Pull | Receptacle Female Sockets | IP50 | Copper Alloy | 7 µin | 0.178 µm | Panel Mount Right Angle Through Hole | Solder | Gold | 500 V | Bulkhead - Front Side Nut | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | ||||||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Gray Green | Polyphenylene Sulfide (PPS) | Push-Pull | Receptacle Female Sockets | IP50 | Copper Alloy | 7 µin | 0.178 µm | Gold | 500 V | Bulkhead - Front Side Nut | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | |||||||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Gray Red | Polyphenylene Sulfide (PPS) | Push-Pull | Male Pins Plug | IP50 | Copper Alloy | 7 µin | 0.178 µm | Free Hanging (In-Line) | Gold | 500 V | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | 4 mm | 5 mm | 0.157 in | 0.197 in | |||
MH Connectors | -20 C | 120 °C | Keyed | Plastic | 10 A | Gray Yellow | Polyphenylene Sulfide (PPS) | Push-Pull | Male Pins Plug | IP50 | Copper Alloy | 7 µin | 0.178 µm | Free Hanging (In-Line) | Gold | 500 V | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Unshielded | 5 mm | 6 mm | 0.197 in | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 20 | $ 9.78 | |
Description
General part information
8P1P003 Series
3 Position Circular Connector Receptacle, Female Sockets Solder
