TR9CA3000T00CFR6B

Active

GlobTek, Inc.

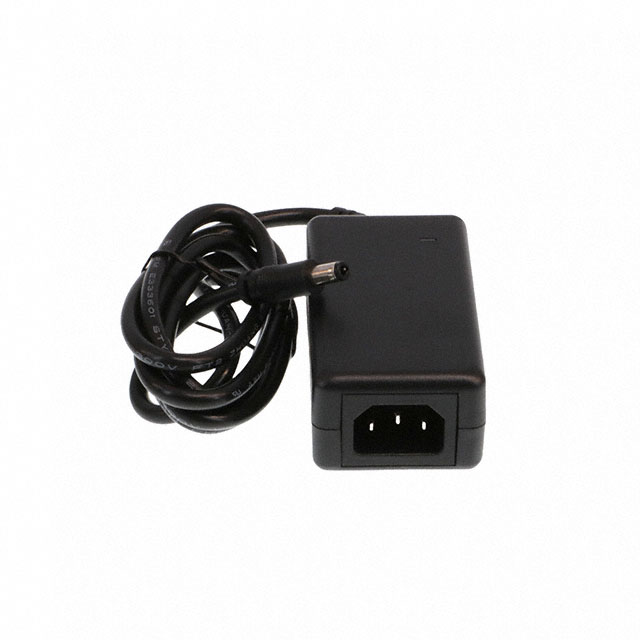

AC/DC DESKTOP ADAPTER 5V 15W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CA3000T00CFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	87 mm
Size / Dimension [x]	3.43 in
Size / Dimension [y]	1.83 in
Size / Dimension [y]	46.5 mm
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Input Type	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Region Utilized	No Load Power Consumption [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Form	Applications	Approval Agency	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output	Cord Length	Cord Length	Cord Length
GlobTek, Inc. TR9CA3000T00CFR6B	Cord	CoC Tier 1 Level VI	1.83 in	1.26 in	32 mm	87 mm	46.5 mm	3.43 in	IEC 320-C14	International	75 mW	60335-1 60601-1 60950-1 62368-1	-20 C	40 °C	90 VAC	264 VAC	Barrel Plug	2.5 mm 5.5 mm	11 mm	Desktop (Class I)	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	15 W	3 A	5 V	1.5 m	59 in
GlobTek, Inc. TR9CA3000T00-IMR6B	Cord	Level VI	1.85 "	1.26 in	32 mm	87 mm	47 mm	3.43 in	IEC 320-C14	International	75 mW	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 C	40 °C	90 VAC	264 VAC	1.3mm x 3.5mm Barrel Plug Kit			Desktop (Class I)	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	15 W	3 A	5 V	47.2 in		1.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.75

General part information

5V 15 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
