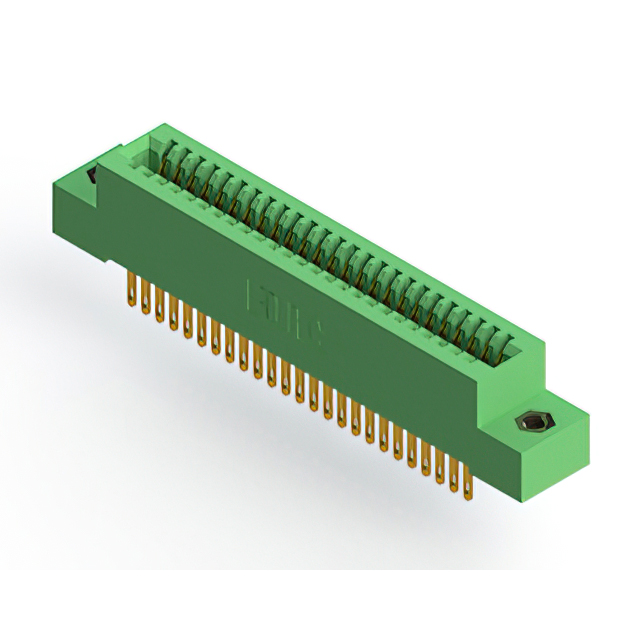

325-050-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-050-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-050-500-207 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
325-050 Series
| Part | Card Thickness | Card Thickness | Contact Finish | Read Out | Number of Rows | Termination | Flange Feature | Contact Material | Color | Number of Positions/Bay/Row [custom] | Termination Rows | Pitch [x] | Pitch [x] | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material - Insulation | Card Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Dual | 2 | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | 25 | 2 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | ||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Single | 1 | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Green | 50 | 1 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | ||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Single | 1 | Solder | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | 50 | 1 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | ||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Single | 1 | Solder Eyelet(s) | Copper Alloy | Green | 50 | 1 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | |||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Dual | 2 | Solder | Flush Mount Top Opening Unthreaded | Copper Alloy | Green | 25 | 2 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | 0.16 in | 4.06 mm |
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Single | 1 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Green | 50 | 1 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | ||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Dual | 2 | Wire Wrap | Copper Alloy | Green | 25 | 2 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | Cantilever | |||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | Dual | 2 | Solder | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | 25 | 2 | 2.54 mm | 0.1 in | Female | 125 °C | -65 ░C | Through Hole | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.25 | |
Description
General part information
325-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
