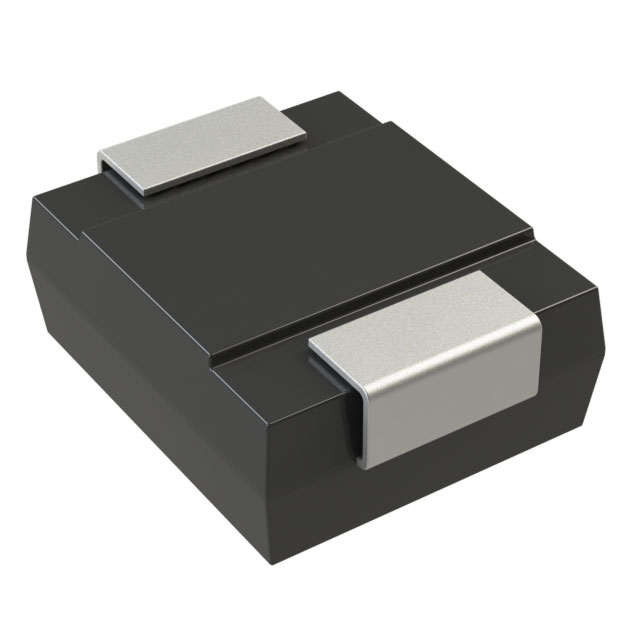

1.5SMC13AHM3/I

Unknown

Vishay General Semiconductor - Diodes Division

TVS DIODE 11.1VWM 18.2V DO214AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5SMC13AHM3/I

Unknown

Vishay General Semiconductor - Diodes Division

TVS DIODE 11.1VWM 18.2V DO214AB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.5SMC13AHM3/I

Applications	Telecom
Current - Peak Pulse (10/1000µs)	82.4 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	12.4 V
Voltage - Clamping (Max) @ Ipp	18.2 V
Voltage - Reverse Standoff (Typ)	11.1 V

1.5SMC13 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Type	Package / Case	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Mounting Type	Voltage - Clamping (Max) @ Ipp	Supplier Device Package	Unidirectional Channels [custom]	Grade	Qualification
Vishay General Semiconductor - Diodes Division 1.5SMC13CA-M3/9AT	150 °C	-65 °C	General Purpose	12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A	1	Surface Mount	18.2 V	DO-214AB (SMCJ)
Vishay General Semiconductor - Diodes Division 1.5SMC13AHM3/I	150 °C	-65 °C	Telecom	12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A		Surface Mount	18.2 V	DO-214AB (SMC)	1	Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division 1.5SMC13CAHE3/57T	150 °C	-65 °C		12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A	1	Surface Mount	18.2 V	DO-214AB (SMCJ)		Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division 1.5SMC13AHM3/H	150 °C	-65 °C	Telecom	12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A		Surface Mount	18.2 V	DO-214AB (SMC)	1	Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division 1.5SMC13CA-M3/57T	150 °C	-65 °C	General Purpose	12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A	1	Surface Mount	18.2 V	DO-214AB (SMCJ)
Vishay General Semiconductor - Diodes Division 1.5SMC13CA-E3/57T	150 °C	-65 °C	General Purpose	12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A	1	Surface Mount	18.2 V	DO-214AB (SMCJ)
Vishay General Semiconductor - Diodes Division 1.5SMC13A-E3/57T	150 °C	-65 °C	General Purpose	12.4 V	11.1 V	Zener	DO-214AB SMC	1.5 kW	1500 W	82.4 A		Surface Mount	18.2 V	DO-214AB (SMCJ)	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1.5SMC13 Series

18.2V Clamp 82.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
