AER43-43-18CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

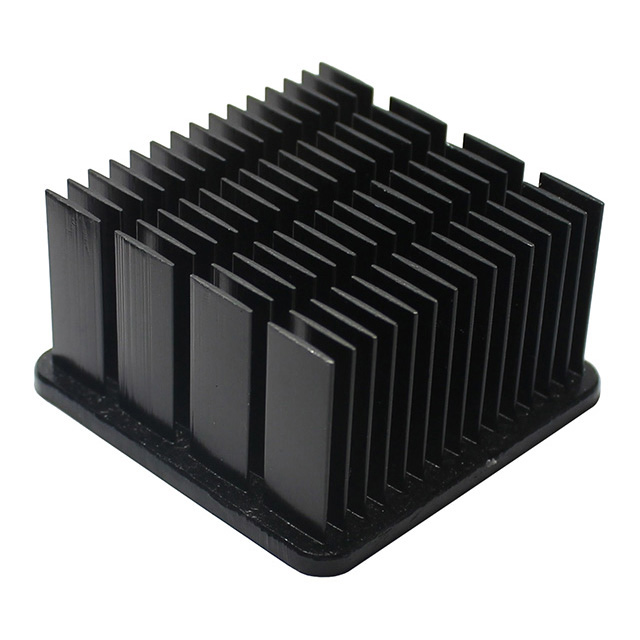

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A01 Laminating Adhesive

AER43-43-18CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsDatasheet A01 Laminating Adhesive

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AER43-43-18CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Length [x]	42.1 mm
Length [x]	1.657 "
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 2.32 °C/W
Thermal Resistance @ Natural	8.57 °C/W
Type	Top Mount
Width [x]	1.657 in
Width [x]	42.1 mm

AER43 Series

Part	Package Cooled	Type	Shelf Life	Thermal Resistance @ Forced Air Flow	Material	Material Finish	Length [x]	Length [x]	Thermal Resistance @ Natural	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Shape	Attachment Method	Fin Height	Fin Height
Tusonix a Subsidiary of CTS Electronic Components AER43-43-21CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	2.02 °C/W	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	8.27 °C/W	20.6 mm	0.811 in	1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components AER43-43-18CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	2.32 °C/W 200 LFM	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	8.57 °C/W			1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components AER43-43-28CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	1.62 °C/W 200 LFM	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	7.47 °C/W	27.6 mm	1.087 in	1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components AER43-43-23CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	1.92 °C/W 200 LFM	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	8.07 °C/W			1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)	22.61 mm	0.89 in
Tusonix a Subsidiary of CTS Electronic Components AER43-43-12CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	2.82 °C/W	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	9.57 °C/W			1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components AER43-43-15CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	2.52 °C/W 200 LFM	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	9.07 °C/W	14.6 mm	0.575 in	1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components AER43-43-33CB/A01	ASIC BGA CPU LGA	Top Mount	24 Months	1.42 °C/W 200 LFM	Aluminum Alloy	Black Anodized	42.1 mm	1.657 "	6.87 °C/W			1.657 in	42.1 mm	Fins Square	Thermal Tape Adhesive (Included)	32.6 mm	1.283 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 6.94

Description

General part information

AER43 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

Datasheet

A01 Laminating Adhesive

Datasheet
