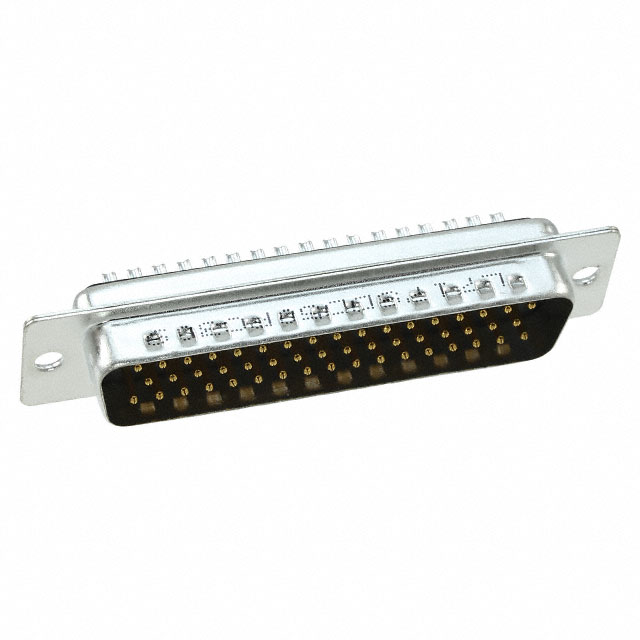

L717SDD50PC309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 50POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L717SDD50PC309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 50POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDD50PC309

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L717SDD50 Series

Part	Termination	Contact Material	Connector Style	Number of Positions	Mounting Type	Contact Finish	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Current Rating (Amps)	Connector Type	Features	Contact Form	Contact Type	Dielectric Material	Material Flammability Rating	Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Wire Gauge	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717SDD50POL2C309	Solder	Brass	D-Sub	50	Through Hole	Gold	250 VDC	0.76 Ám	30 Áin	5	3 A	Male Pins Plug	Grounding Indents	Stamped	Signal	Thermoplastic Glass Filled	UL94 V-0	Black	3	-55 °C	125 °C	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) L717SDD50PC309		Brass	D-Sub	50	Free Hanging (In-Line)	Gold	250 VDC	0.76 Ám	30 Áin	5	3 A	Male Pins Plug	Grounding Indents	Stamped	Signal	Thermoplastic Glass Filled	UL94 V-0	Black	3	-55 °C	105 ░C	Housing/Shell (Unthreaded)	20 AWG
Amphenol ICC (Commercial Products) L717SDD50P		Brass	D-Sub	50	Free Hanging (In-Line)	Gold	250 VDC			5	3 A	Male Pins Plug	Grounding Indents	Stamped	Signal	Thermoplastic Glass Filled	UL94 V-0	Black	3	-55 °C	105 ░C	Housing/Shell (Unthreaded)	20 AWG	Flash
Amphenol ICC (Commercial Products) L717SDD50PVFC309		Brass	D-Sub	50	Free Hanging (In-Line)	Gold	250 VDC	0.76 Ám	30 Áin	5	3 A	Male Pins Plug	Grounding Indents	Stamped	Signal	Thermoplastic Glass Filled	UL94 V-0	Black	3	-55 °C	125 °C	Female Screwlock (4-40) Mating Side
Amphenol ICC (Commercial Products) L717SDD50PVFMC309		Brass	D-Sub	50	Free Hanging (In-Line)	Gold	250 VDC	0.76 Ám	30 Áin	5	3 A	Male Pins Plug	Grounding Indents	Stamped	Signal	Thermoplastic Glass Filled	UL94 V-0	Black	3	-55 °C	125 °C	Female Screwlock (M3) Mating Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.12
		10	$ 5.54
		25	$ 5.23
		40	$ 5.10
		80	$ 4.85
		240	$ 4.34
		440	$ 4.08
		960	$ 3.57
		2400	$ 3.39

Description

General part information

L717SDD50 Series

50 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
