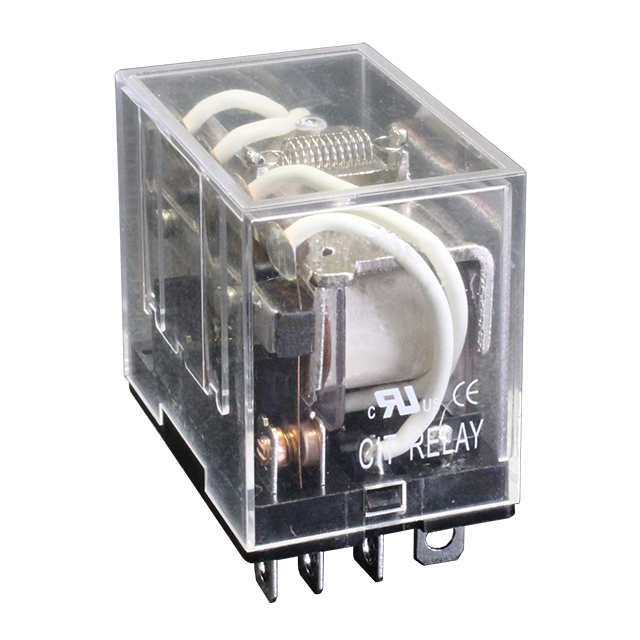

J1522CT120VACD

Active

CIT Relay and Switch

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J1522CT120VACD

Active

CIT Relay and Switch

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J1522CT120VACD

Approval Agency	cURus, TUV
Coil Current	26.4 mA
Coil Resistance	4.55 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Features	Lighted Indicator
Load - Max Switching [Max]	3000 VA
Mounting Type	Socketable
Must Operate Voltage	96 VAC
Must Release Voltage	36 VAC
Operate Time	25 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage [Max]	300 VAC
Termination Style	Plug In

J1522C Series

Part	Coil Current	Coil Resistance	Contact Form	Contact Material	Switching Voltage [Max]	Coil Voltage	Coil Type	Must Release Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching [Max]	Contact Rating (Current)	Must Operate Voltage	Termination Style	Mounting Type	Release Time	Approval Agency	Operate Time	Features
CIT Relay and Switch J1522CP110VDC	10 mA	11000 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	110 VDC	Non Latching	11 VDC	General Purpose	85 °C	-40 °C	3000 VA	10 A	82.5 VDC	PC Pin	Through Hole	25 ms	cURus TUV	25 ms
CIT Relay and Switch J1522CP12VDC	75 mA	160 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	12 VDC	Non Latching	1.2 VDC	General Purpose	85 °C	-40 °C	3000 VA	10 A	9 VDC	PC Pin	Through Hole	25 ms	cURus TUV	25 ms
CIT Relay and Switch J1522CT120VACD	26.4 mA	4.55 kOhms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	120 VAC	Non Latching	36 VAC	General Purpose	85 °C	-40 °C	3000 VA	10 A	96 VAC	Plug In	Socketable	25 ms	cURus TUV	25 ms	Lighted Indicator
CIT Relay and Switch J1522CF24VDCD	37.5 mA	640 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	24 VDC	Non Latching	2.4 VDC	General Purpose	85 °C	-40 °C	3000 VA	10 A	18 VDC	Plug In	Chassis Mount	25 ms	cURus TUV	25 ms	Lighted Indicator
CIT Relay and Switch J1522CP110VACD	29.3 mA	3.75 kOhms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	110 VAC/DC	Non Latching	33 VAC	General Purpose	85 °C	-40 °C	3000 VA	10 A	88 VAC/DC	PC Pin	Through Hole	25 ms	cURus TUV	25 ms	Lighted Indicator
CIT Relay and Switch J1522CT12VDCD	75 mA	160 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	12 VDC	Non Latching	1.2 VDC	General Purpose	85 °C	-40 °C	3000 VA	10 A	9 VDC	Plug In	Socketable	25 ms	cURus TUV	25 ms	Lighted Indicator
CIT Relay and Switch J1522CF12VDCD	75 mA	160 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	12 VDC	Non Latching	1.2 VDC	General Purpose	85 °C	-40 °C	3000 VA	10 A	9 VDC	Plug In	Chassis Mount	25 ms	cURus TUV	25 ms	Lighted Indicator
CIT Relay and Switch J1522CF110VACD	29.3 mA	3.75 kOhms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	110 VAC/DC	Non Latching	33 VAC	General Purpose	85 °C	-40 °C	3000 VA	10 A	88 VAC/DC	Plug In	Chassis Mount	25 ms	cURus TUV	25 ms	Lighted Indicator
CIT Relay and Switch J1522CF12VAC	260.9 mA	46 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	12 VAC/DC	Non Latching	3.6 VAC	General Purpose	85 °C	-40 °C	3000 VA	10 A	9.6 VAC/DC	Plug In	Chassis Mount	25 ms	cURus TUV	25 ms
CIT Relay and Switch J1522CT24VAC	130.4 mA	184 Ohms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	300 VAC	24 VAC	Non Latching	7.2 VAC	General Purpose	85 °C	-40 °C	3000 VA	10 A	19.2 VAC	Plug In	Socketable	25 ms	cURus TUV	25 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 4.38

Description

General part information

J1522C Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
