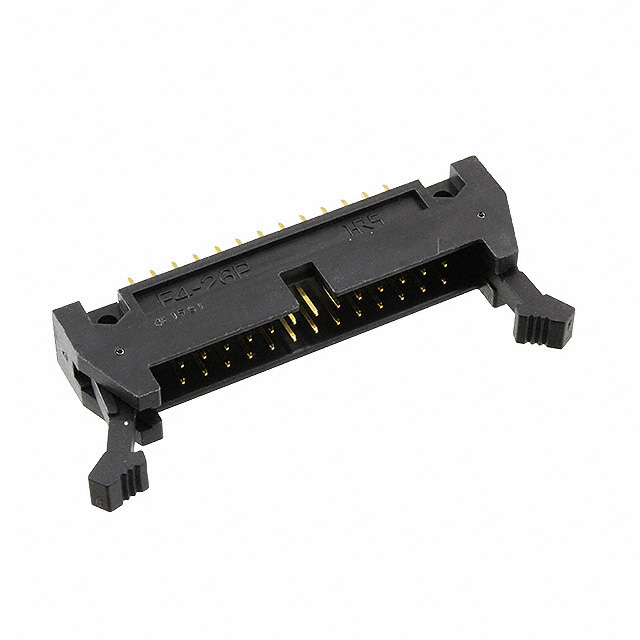

HIF4-26P-3.18DSA

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 26POS 3.18MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF4-26P-3.18DSA

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 26POS 3.18MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF4-26P-3.18DSA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Mating	5.1 mm
Contact Length - Mating	0.201 in
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Insulation Color	Black
Insulation Height	18.3 mm
Insulation Height	0.72 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.673 in
Overall Contact Length	17.09 mm
Row Spacing - Mating	3.18 mm
Row Spacing - Mating	0.125 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

HIF4 Series

Part	Accessory Type	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions	Contact Shape	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Current Rating (Amps)	Contact Material	Contact Type	Voltage Rating	Contact Finish - Mating	Mounting Type	Shrouding	Number of Positions Loaded	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Insulation Height	Insulation Height	Connector Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Pitch [x]	Pitch [x]	Row Spacing [custom]	Row Spacing [custom]	Cable Termination	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Features	Wire Gauge	Contact Finish	Number of Positions	Color
Hirose Electric USA, Inc. HIF4-GPA	Guide Plate	HIF4 Series
Hirose Electric USA, Inc. HIF4-26P-3.18DSA			85 °C	-55 °C	UL94 V-0	26	Square	Black	0.203 Ám	8 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	18.3 mm	0.72 in	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2	0.673 in	17.09 mm	3.6 mm	0.142 in
Hirose Electric USA, Inc. HIF4-34P-3.18DS			85 °C	-55 °C	UL94 V-0	34	Square	Black	0.203 Ám	8 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole Right Angle	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	10 mm	0.394 "	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2			3.5 mm	0.138 in
Hirose Electric USA, Inc. HIF4-16D-3.18R														Female Socket			Free Hanging (In-Line)									Receptacle				2					0.125 in	3.18 mm	0.125 in	3.18 mm	IDC	Discrete or Ribbon Cable	8 çin	0.203 çm	Strain Relief	24 AWG	Gold	16	Black
Hirose Electric USA, Inc. HIF4-16P-3.18DS			85 °C	-55 °C	UL94 V-0		Square	Black	0.203 Ám	8 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole Right Angle	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	10 mm	0.394 "	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2			3.5 mm	0.138 in												16
Hirose Electric USA, Inc. HIF4-34P-3.18DSA(01)			85 °C	-55 °C	UL94 V-0	34	Square	Black	0.76 Ám	30 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	18.3 mm	0.72 in	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2	0.673 in	17.09 mm	3.6 mm	0.142 in
Hirose Electric USA, Inc. HIF4-40P-3.18DS(01)			85 °C	-55 °C	UL94 V-0	40	Square	Black	0.76 Ám	30 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole Right Angle	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	10 mm	0.394 "	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2			3.5 mm	0.138 in
Hirose Electric USA, Inc. HIF4-26P-3.18DS			85 °C	-55 °C	UL94 V-0	26	Square	Black	0.203 Ám	8 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole Right Angle	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	10 mm	0.394 "	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2			3.5 mm	0.138 in
Hirose Electric USA, Inc. HIF4-34P-3.18DS(01)			85 °C	-55 °C	UL94 V-0	34	Square	Black	0.76 Ám	30 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole Right Angle	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	10 mm	0.394 "	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2			3.5 mm	0.138 in
Hirose Electric USA, Inc. HIF4-34P-3.18DSA			85 °C	-55 °C	UL94 V-0	34	Square	Black	0.203 Ám	8 Áin	Board to Cable/Wire	3 A	Phosphor Bronze	Male Pin	300 VDC	Gold	Through Hole	Shrouded - 4 Wall	All	Solder	3.18 mm	0.125 in	Polybutylene Terephthalate (PBT)	18.3 mm	0.72 in	Header	5.1 mm	0.201 in	Latch Lock/Eject Hooks	2	0.673 in	17.09 mm	3.6 mm	0.142 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.47
		10	$ 11.89
		80	$ 9.50
		440	$ 8.00
		945	$ 7.44

Description

General part information

HIF4 Series

Connector Header Through Hole 26 position 0.125" (3.18mm)
