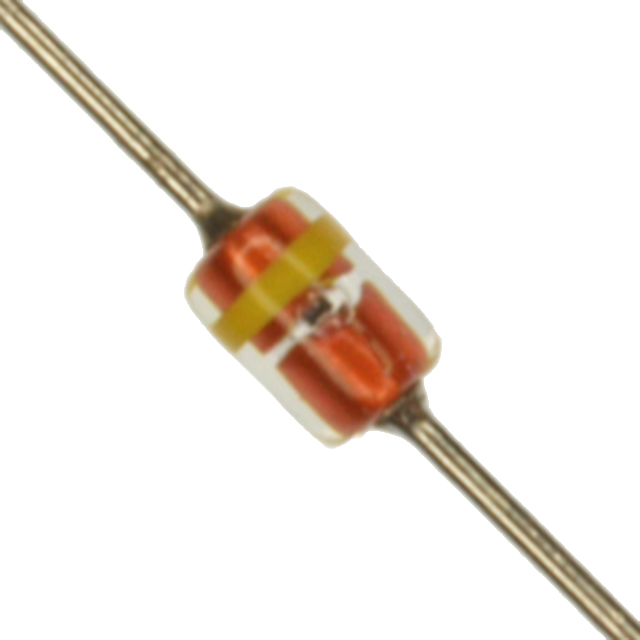

1SS133T-72

Obsolete

Rohm Semiconductor

DIODE GEN PURP 80V 130MA MSD

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

DIODE GEN PURP 80V 130MA MSD

Technical Specifications

Parameters and characteristics for this part

Specification	1SS133T-72

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	130 mA
Current - Reverse Leakage @ Vr	500 nA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	DO-34, DO-204AG, Axial
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	MSD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	80 V

Part	Current - Average Rectified (Io)	Capacitance @ Vr, F	Speed	Speed	Technology	Mounting Type	Reverse Recovery Time (trr)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction [Max]
Rohm Semiconductor 1SS133T-72	130 mA	2 pF	Any Speed	200 mA	Standard	Through Hole	4 ns	MSD	80 V	500 nA	Axial DO-204AG DO-34	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 80 V 130mA Through Hole MSD
